Introducing Semikron’s discrete diodes and thyristors for low to high-power applications

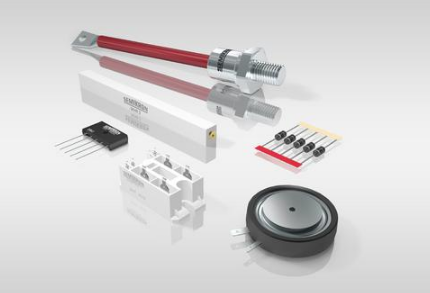

Semikron's Discrete Diodes and Thyristors by GD Rectifiers

Semikron offer a wide range of discrete diodes and thyristors, with a wide range of case designs available in voltage classes from 200V to 8000V and current ratings from 1A to 7500A.

Discrete semiconductor components are used in a wide variety of applications and provide particular benefits when high current, uncommon topologies, natural cooling or stability in harsh conditions are required.

The Semikron portfolio includes axial leaded diodes up to 6A, diodes and thyristors in screw-fit (stud) and capsule housings for up to 7500A and 8000V and 1200A and 1800V for diodes and thyristors. Semikron’s discrete components provide easy assembly, hermetic sealing and rugged construction.



Avalanche Diodes

  • No overvoltage suppressors required
  • Robust in short reverse overload conditions
  • High blocking voltages possible without static or dynamic voltage sharing circuits



Discrete Applications

Semikron’s discrete components are predominantly used for welding machines, battery chargers, electroplating, soft starters, DC motor control, AC controllers, alternators and many more. Semikron’s discrete devices are convenient for both natural convection and forced cooling, allowing for a broader range of applications.

With over 50 years of experience in the power electronics industry and millions of units produced every single year, Semikron’s portfolio delivers competitive, flexible and highly reliable products and solutions.



Discrete Product Range

Axial diodes 1a to 6A 100V to 2000V
HV axial screw diodes Up to 2.5A Up to 8000V
Stud (screw-fit) diodes 5A to 600A 200V to 5000V
Capsule (disc) diodes Up to 7500A 100V to 2200V
Stud (screw-fit) thyristors 10A to 300A 400V to 1800V
Capsule (disc) thyristors 340A to 1200A 400V to 1800V



Semikron’s Discrete Components



 Semikron Discrete Devices by GD Rectifiers

Key Features

  • Recommended for forced air and water cooling
  • Compact case with high current capability
  • Stud and disc types: forward drop selections available for easy paralleling
  • Axial diodes for PCB mounting
  • Available in standard and fast versions



Rectifier Bridges

Semikron offer a single-phase and 3-phase isolated rectifier bridges for low to medium power applications. Both standard and special topologies feature diodes, thyristors and IGBTs which are available in various case and terminal designs. For voltages ranging from 200V to 2200V and currents ranging from 9A to 494A.

Semikron’s rectifier bridges are the solution for many applications when performance, space and fast production is paramount to an engineer.

Single of 3-phase topologies featuring diodes, thyristors and IGBTs in isolated compact cases can be achieved by selecting either a solder-based connection, solderless connection with spring or press-fit contacts, or mechanical screw connections, fast-on connectors or bus bars.

Semikron’s rectifier bridges are used in a wide range of applications, including: battery chargers, motor drive input rectifiers, power supplies, DC motor control, rectifiers with PFC, AC controllers 9SKWT type) static switches for natural convection or forced cooling.



Rectifier Bridge Product Range

From 9A to 494A, 400V to 2200V

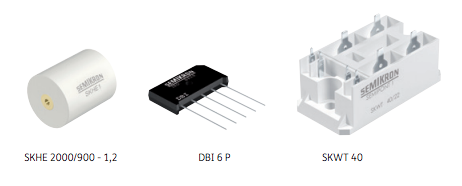

Semikron Rectifier Bridges by GD Rectifiers



New Discrete and Rectifier Bridges

Product Type Current I (A) @ Tc / Tamb Voltage (V)
In-line bridges for PCB assembly DBI 6 P

DBI 25 P

9A @ 113°C

27A @ 32°C

200…2200

200…2200

High-voltage diodes SKHE 2000/900-1,2



SKHE 3500/2200-2,0

1.5A @ 45°C





2.5A @ 45°C

V(BR)=6000

VVRMS=2000



V(BR)=10000 VVRMS=3500

Quadbridge KBPC 35/10 35A @ 55°C 400…1000
New stud screw diodes SKN 46 / SKR 46

SKNa46 / SKRa 46

SKN 86 / SKR 86

SKNa 86 / SKRa 86

45A @ 125°C

45A @ 125°C

85A @130°C

85A @130°C

400…1600

1400…2000

800…1600

1400…2000

SW17, M8 (1/4-28 UNF 2A)

SW17, M8 (1/4-28 UNF 2A)

SW17, M8 (1/4-28 UNF 2A)

SW17, M8 (1/4-28 UNF 2A)

Disc thyristors and diodes SKN 503 SG

SKN 1503 SG

SKN 6000

SKN 7500

SKT 553 SG

SKT 813

SKT 883



503A @ 120°C

1690A @ 75°C

6000A @ 85°C

7500A @ 85°C

554A @ 85°C

855A @ 85°C

890A @ 85°C

400…2200

400…2200

200…600

600

400…1800

400…1800

400…1800

Ø42 x Ø25 x H14.5

Ø58 x Ø36 x H26.5

Ø60 x Ø44 x H8

Ø49.5 x Ø47.5 x H5.3

Ø42 x Ø25 x H14.5

Ø50 x Ø32 x H14.5

Ø58 x Ø36 x H26.5

Axial leaded diodes SK 6

SKa 6

6A @ 50°C

6A @ 50°C

400…1600

1700…2000



Avalanche


GD Rectifiers
are celebrating 55 years as a Semikron partner, currently servicing customers with discrete semiconductors, diodes, thyristors, IGBTs, IGBT drivers, MOSFETs,

thyristor diode modules, rectifier bridges, SiC power modules, SiC hybrid power modules, heatsinks and power assemblies throughout Europe.



For further information on Semikron’s discrete diodes, thyristors and rectifier bridges please call GD Rectifiers on: 01444 243 452 or email: enquiries@gdrectifiers.co.uk.
