Three Phase Power Assemblies

Offering an extensive range of three phase star controlled and uncontrolled rectifiers, fully controlled and half controlled bridges, fully controlled and half controlled voltage regulators, three phase diode bridges, and three phase AC motor soft starters and energy savers.

Please note we are still adding products to our new website. Can't see the product you need? Contact us on 01444 243 452 / enquiries@gdrectifiers.co.uk

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Can We Help?

Whether you’re looking for one-off prototypes for personal, commercial, or educational use, or if you’re working on a large-scale project and need a full production run of assemblies, we are here to help.

Contact us

Power Assembly Designer & Manufacturer

We’ve been designing and manufacturing power semiconductor assemblies for twenty years, specialising in the design of rectifiers, regulators, inverters, selenium suppressors and single phase, three phase and hex-phase assemblies.



We utilise the experience of our mechanical, electrical and power electronics engineering experts to test, design and deliver the best technology in our products.

Learn more

Three Phase Assemblies

Tailor made to suit your application

Three-phase power assemblies are usually a three-wire ac power circuit with each phase AC signal 120 electrical degrees apart.

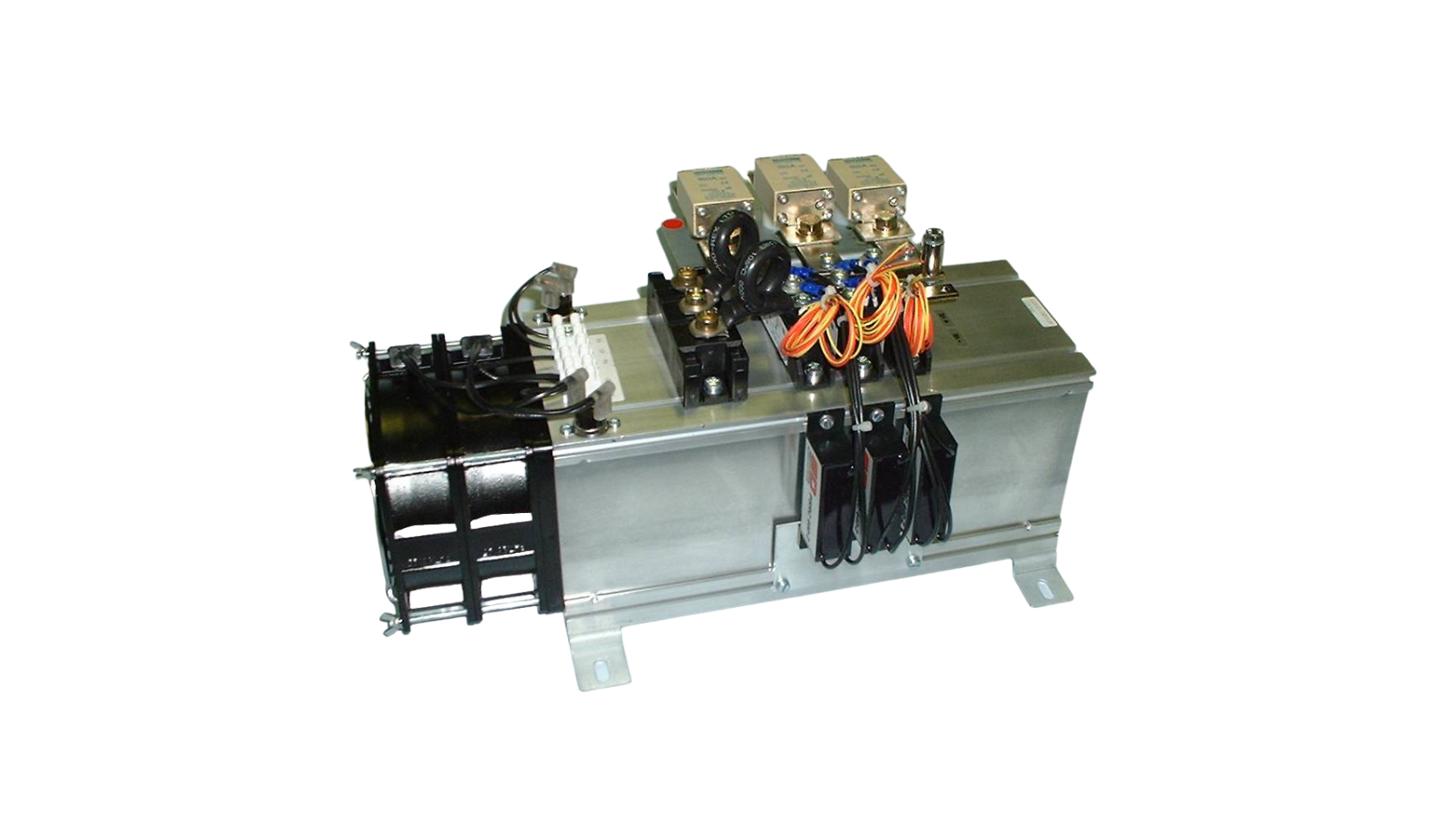

At GD Rectifiers we offer a full range of three phase rectifier assemblies that are built with several combinations of power semiconductors including thyristors, diodes and modules connected as three phase bridges mounted onto heat sinks. As well as our standard range of rectifiers, we can also manufacture customer specific assemblies using power semiconductors provided by IXYS, IXYS UK Westcode, Semikron or Dynex.

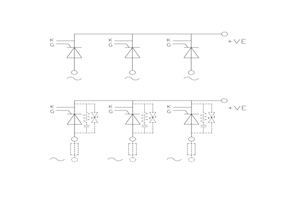

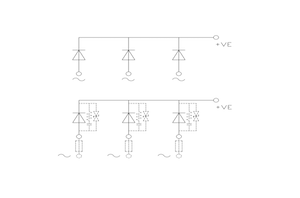

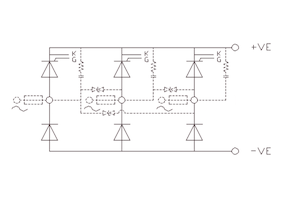

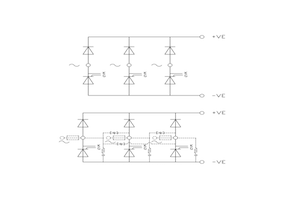

We offer a broad range of topologies including: three phase diode bridges (B6U), three phase fully controlled bridges (B6C), three phase half controlled bridges (B6HA, B6HAF, B6HK, B6HKF), three phase fully controlled voltage regulators (W3C), three phase half controlled voltage regulators (W3H), star controlled rectifiers (M3CK), star uncontrolled rectifiers (M3UK), and three phase AC motor soft starters and energy savers (W3C-SS).

Ready to assist

Whether you already know exactly what you need, or would benefit from guidance from our technical team on the most suitable and cost-effective cooling solution or a refurbishment service, get in touch with our team to see how we could work together.

Request a Quote

Related Products

  • Download Datasheet
  • Parts List
  • Compare

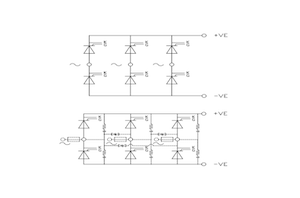

B6C 020295 Three Phase Fully Controlled Bridge

  • Download Datasheet
  • Parts List
  • Compare

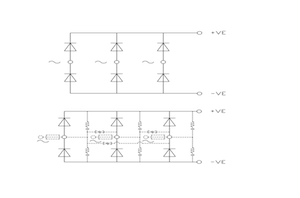

B6U 020266 Three Phase Diode Bridge

  • Download Datasheet
  • Parts List
  • Compare

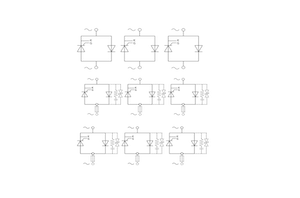

W3H 020016 Three Phase Half Controlled Voltage Regulator

  • Download Datasheet
  • Parts List
  • Compare

B6C 020350 Three Phase Fully Controlled Bridge

  • Download Datasheet
  • Parts List
  • Compare

B6U 020255 Three Phase Diode Bridge

  • Download Datasheet
  • Parts List
  • Compare

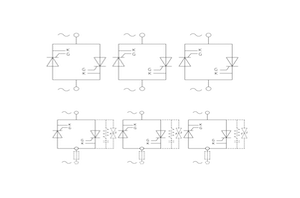

W3C 020014 Three Phase Fully Controlled Voltage Regulator

  • Download Datasheet
  • Parts List
  • Compare

B6U 020300 Three Phase Diode Bridge

  • Parts List
  • Compare

B6HAF Three Phase Half Controlled Bridge (common anode thyristors) plus FWD

  • Download Datasheet
  • Parts List
  • Compare

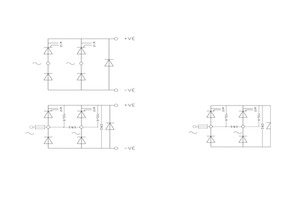

B6HKF 020065B3 Three Phase Half Controlled Bridge

  • Download Datasheet
  • Parts List
  • Compare

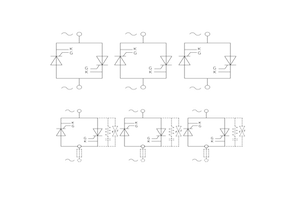

W3C-SS 020004 Three Phase AC Motor Soft Starter and Energy Saver

  • Download Datasheet
  • Parts List
  • Compare

W3C 020012 Three Phase Fully Controlled Voltage Regulator

  • Download Datasheet
  • Parts List
  • Compare

B6U 021955 Three Phase Diode Bridge
