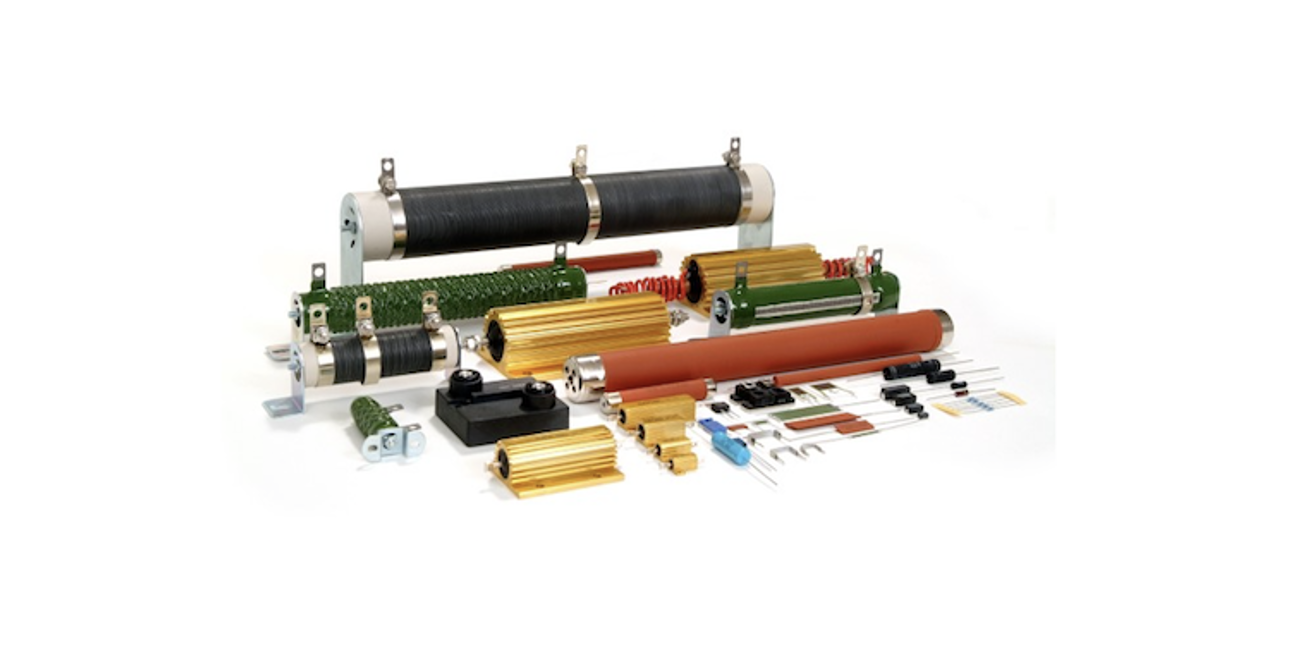

Power Resistors

A broad range of power resistors designed for power generation, traction, renewables, drives and controls and marine applications. We are a leading provider of resistive products for high current, high voltage and high energy applications.

Please note we are still adding products to our new website. Can't see the product you need? Contact us on 01444 243 452 / enquiries@gdrectifiers.co.uk

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Arcol Power Resistors

Established Manufacturer for 70 Years

Arcol specialise in power resistors, from design and purchasing to technical advice and sales. Special technologies are used in the high voltage/high resistance, low ohms/foil/current sense, high pulse/energy absorb, thick film and wirewound products.

Arcol can assist in resolving special requirements in applications such as traction (auxiliary power devices), power generation and distribution, motor drives, power supplies, and GTO protection circuits.

Power resistors are made from materials with high thermal conductivity in order to allow efficient cooling, resistors are designed to dissipate a large amount of power. All power resistors are designed to dissipate the most amount of power possible whilst keeping their size as small as possible.

We offer a broad range of power resistors designed for power generation, traction, renewables, drives and controls and marine applications. We are a leading provider of resistive products for high current, high voltage and high energy applications in the medical, transport, military/aerospace and power distribution industries.

Medical

With a wide array of components for motion control, circuit conditioning and circuit protection, we have the proven quality and reliability for applications crucial to the accurate diagnosis of patients throughout the world.

Transportation

Our transportation solutions are customised to customers specifications and are flexible to every requirement.

Military/Aerospace

With a wide range of components for motion control and circuit conditioning, we offer a complete line of precision resistive products for military and aerospace needs.

Power Distribution

Our power resistors service demanding high current, load bank and power distribution markets.

We stock a wide range of power resistors, including: FPA Style and thick Film Resistors, HS Aluminium Resistors, Vitreous Enamelled Resistors and OHMITE Tap 1000 and 2000 Series Resistors.

All of our resistors are manufactured in line with the requirements of MIL 18546 and IEC 115 and are designed for direct heatsink mounting with thermal compound to achieve maximum performance.

GD Rectifiers stock a wide range of Arcol resistors, including: HS Aluminium Resistors, FPA Style and Thick Film Resistors, Vitreous Enamelled Resistors and OHMITE Tap 1000 and 2000 Series.

Resistor Styles

HS Aluminium        FPA & Thick               Vitreous                 OHMITE
Resistors           Film Resistors      Enamelled Resistors    Resistors

   Datasheet            Datasheet               Datasheet              Datasheet

HS Aluminium Housed Resistors



Manufactured in line with the requirements of MIL 18546 and IEC 115, designed for direct heatsink mounting with thermal compound to achieve maximum performance. Arcol’s aluminium housed heatsink resistors range from 10 watts to 300 watts.

Key features

– High power to volume
– Wound to maximise high pulse capability
– Values from RODS to lOOK
– Custom designs welcome
– RoHS compliant

View Datasheet



FPA RESISTOR SERIES

FPA100 FPA250 FPA600

              FPA100 SOT-227                FPA250 THICK FILM               FPA600 THICK FILM

              STYLE RESISTOR                 POWER RESISTOR                       RESISTOR

              View Datasheet                    View Datasheet                      View Datasheet



VITREOUS ENAMELLED RESISTOR SERIES

VT180-VT380 Vitreous Enamelled Resistors  VT30-VT60 Vitreous Enamelled Resistors  VT90-VT150 Vitreous Enamelled Resistors

VT180 – VT380 VITREOUS           VT30 – VT60 VITREOUS            VT90 – VT150 VITREOUS

ENAMELLED RESISTOR                ENAMELLED RESISTOR             ENAMELLED RESISTOR

   View Datasheet                               View Datasheet                       View Datasheet



OHMITE TAP1000 & 2000 SERIES

OHMITE TAP1000 AND 2000 Series

OHMITE TAP1000 AND 2000 SERIES

                View Datasheet





For further information on Arcol’s Resistor range please call: 01444 243 452 or email: enquiries@gdrectifiers.co.uk.
