Motor Protection Devices

Our motor protection range protects motors from harmful overvoltage and dV/dt spikes generated by the drive’s output. This series carries CE and UL approvals and offers a current range from 3 to 1100A with unique features such as high linearity vs frequency and current, very low operating temperatures and compact dimensions.

Please note we are still adding products to our new website. Can't see the product you need? Contact us on 01444 243 452 / enquiries@gdrectifiers.co.uk

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Need Motor Protection Devices Urgently?

As Enerdoor's exclusive UK distributor, we'll talk you through our range of motor protection devices and find one to suit you. Enerdoor's motor protection devices are made to order so contact our team today to discuss your requirements and place an order.

Contact us

Motor Protection

Protect motors from harmful overvoltage and dV/dt spikes

Enerdoor’s motor protection series protects motors from harmful overvoltage and dV/dt spikes generated by the drive’s output, ideal for applications with variable frequency drives, servo drives and long cable applications. This series includes common mode and differential mode inductances, sine wave filters and snubbers designed to work with various frequency switches, output frequencies and applications.  The sine wave filter series reduces the pulse wave modulation (PWM) effect, converts the PWM to a sine wave and reduces dV/dt.

Motor protection devices by Enerdoor

The FIN915SF model is used with fundamental frequencies up to 2kHz. The high frequency inductance FIN960F is a unique solution used for synchronous motor spindle applications.

View Enerdoor Product Catalogue



Part No.                 Type Rated Current        Nominal Voltage         Characteristics
FIN47SNB.50.1M Snubber Motor Protection 0 – 500 Vac Reduces dV/dT, remote contact indicator, compact dimensions due to the parallel installation, frequency range 50-50Hz
FIN900 Three Phase Choke 10 – 280A 500 Vac High impedence, reduces high frequency interference (PWM), cable/screw connections available
FIN930 Reactor on the Line 10 – 200A 600 Vac Common-mode impedance, reduces dV/dT form inverter – motor, low impedance, long motor life
FIN950U Output Reactor 480 Vac Frequency range 50-60Hz, insulation class H, max current frequency 100Hz
FIN960F Load Reactor 7 – 500A 750 Vac Synchronous electrosplindle application, no heating on the core, high linearity versus frequency
FIN905SF Three Phase Sinusoidal 8 – 880A 480 Vac Reduces dV/dT, increases motor life

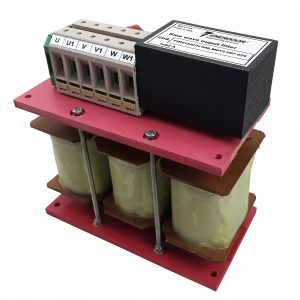

FIN915SFH Three Phase Sinusoidal 8 – 250A 480 Vac Reduces dV/dT, increases motor life, very low heating for high frequency application

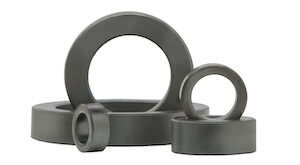

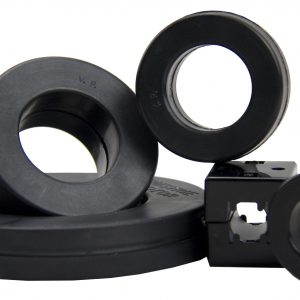

FINTR Ferrite Core Ratings available in different sizes, very high permeability ferrite, plastic cover protection



For further information on Enerdoor’s motor protection series please contact us on 01444 243 452 or email enquiries@gdrectifiers.co.uk.

GD Rectifiers engineer reordering components.

Can't find what you're looking for?

We welcome the chance to beat your current prices by quoting you on volume orders, sourcing items from manufacturers extended ranges or those not currently in our product portfolio. We hold quotes for 30 days, protecting you against price increases.

Find Out More

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Parts List
  • Compare

FIN915SFH.960.M High Frequency Sine Wave Filter

  • Parts List
  • Compare

FIN915SFH.180.M High Frequency Sine Wave Filter

  • Parts List
  • Compare

FIN915SFH.060.M High Frequency Sine Wave Filter

  • Parts List
  • Compare

FIN915SFH.010.M High Frequency Sine Wave Filter

  • Download Datasheet
  • Parts List
  • Compare

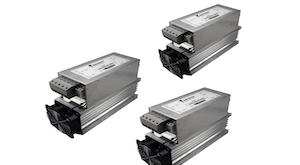

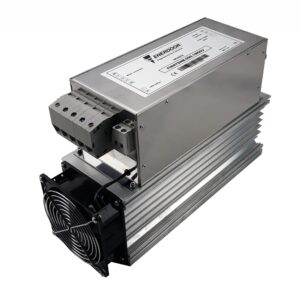

FIN47SNB.050.1M.X.Y Snubber dV/dt Filter

  • Parts List
  • Compare

FIN915SFH.140.M High Frequency Sine Wave Filter

  • Parts List
  • Compare

FIN915SFH.860.M High Frequency Sine Wave Filter

  • Download Datasheet
  • Parts List
  • Compare

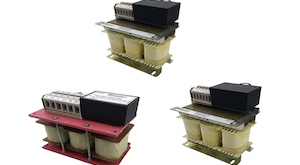

FIN905SF.660.B Sine Wave Filter

  • Download Datasheet
  • Parts List
  • Compare

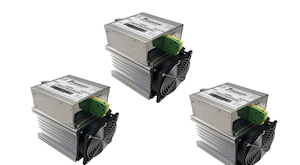

FINSTP.100.M100 Star Point Snubber

  • Parts List
  • Compare

FIN915SFH.005.M High Frequency Sine Wave Filter

  • Download Datasheet
  • Parts List
  • Compare

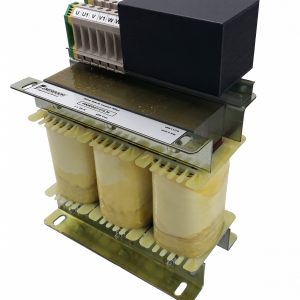

FIN905SF.010M Sine Wave Filter

  • Download Datasheet
  • Parts List
  • Compare

FINSTP.068.M100 Star Point Snubber
