October 2017 – Semikron Compact Soft Starter Module
Published on: 05/10/2017

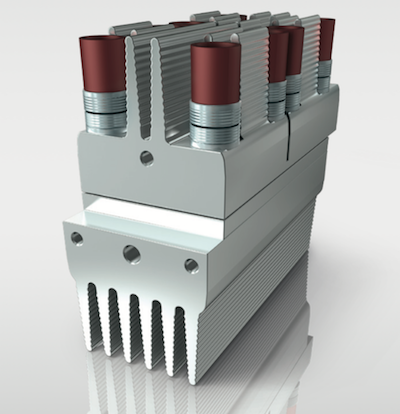

Discover the benefits of the SEMiSTART compact soft starter module
Product Range
Semikron’s SEMiSTART power modules are available in three housing sizes for overload currents ranging from 560A to 3080A. All overload current classes are available for voltages of 1400V and 1800V.
| Case | Vrrm/Vrdm in V | I overload in A | Dimensions L x H x W in mm |
| SEMiSTART 1 | 1400-1800 | 560 | 98 x 100 x36 |
| SEMiSTART 2 | 1400-1800 | 800, 1225, 1500 | 123 x 100 x 50 |
| SEMiSTART 3 | 1400-1800 | 3080 | 180 x 160 x76 |
Key Features
- Up to 3080A
- Qualified plug and play subsystem
- Robust pressure contact technology
- Double-sided cooling for high load cycle capability
- Excellent thermal performance
- 560A up to 3080A overload current
Soft Starter Module Benefits
Semikron’s SEMiSTART are power modules integrated with heat sinks, the provide an ultra-compact design for soft-start applications. They feature double-sided cooling along with pressure contact technology allowing for a high current capability with overload currents of up to 3080A for 20s overload duration. SEMiSTART is a robust plug and play subsystem that helps reduce development time and system costs.
Applications
Semikron’s SEMiSTART range of anti-parallel thyristor modules are designed for soft-start applications.
GD Rectifiers first started distributing Semikron’s semiconductors (including diodes, IGBTs, MOSFETs, thyristors, thyristor diode modules and rectifiers), heat sinks and power assemblies in 1964. With over 50 years’ experience in the power electronics industry, GD Rectifiers are one of the UK’s leading Semikron distributors, offering unrivalled high pricing, fast delivery and customer service.
For further information on Semikron’s product range click here or call us today on: 01444 243 452 or email: enquiries@gdrectifiers.co.uk.
