April 2020 –  Eaton’s Bussmann series Battery Storage Fuse Links

Published on: 21/04/2020

Introducing Bussmann’s new battery storage fuses, ideal for electric vehicles

Bussmann's Battery Storage Fuse Links by GD Rectifiers

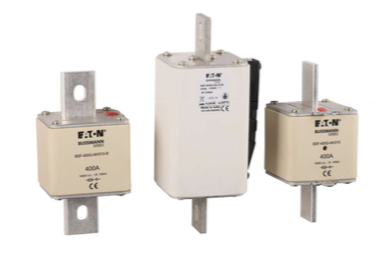

Eaton’s Bussmann series have recently launched battery storage fuse links, designed specifically to protect and isolate battery array combiners and disconnects. They are capable of interrupting low overcurrent associated with faulty battery storage systems.



Features and Benefits

  • Designed in accordance with the proposed IEC 60269-7 standard, ensuring your system will be sufficiently protected from possible fault conditions and give the longest possible service life
  • Low power loss ensures your application runs optimally and supports the system to maximise the efficiency of the battery storage system
  • Bolted and bladed mounting options are available to suit new, replacement or upgrade battery storage systems
  • Full range of fuse bases and accessories are available to make easy installation a reality



Specifications

  • Fuse body types: XL and NH
  • Rated voltage: NH fuses (1000Vdc), XL fuses (1500Vdc)
  • Breaking capacity: 100kA
  • Time constant: 4.5ms at 100kA
  • RoHS and Reach complaint
  • Operating class: gBat proposed for full range fuses for protection of battery storage systems
  • IEC 60269-7 for battery storage fuses is under preparation (expected in 2021)



NH Battery Storage Fuse Links

Catalogue No. with knife blade Catalogue No. with bolted blade Fuse body Size Rated Current (Amps) Rated Voltage (Vdc) Pre-arcing I2t Total I2t @1000Vdc Power Loss at 0.7 x In (W) Power loss at In (W)
BSF-063G-NH110 BSF-063G-NH110-B 1 63 1000 470 4300 5 12
BSF-080G-NH110 BSF-080G-NH110-B 1 80 1000 640 5760 6 15.5
BSF-100G-NH110 BSF-100G-NH110-B 1 100 1000 1300 11,700 7 16.5
BSF-125G-NH110 BSF-125G-NH110-B 1 125 1000 2600 23,400 7 17.5
BSF-160G-NH110 BSF-160G-NH110-B 1 160 1000 5200 46,800 11 27.5
BSF-200G-NH110 BSF-200G-NH110-B 1 200 1000 10,200 82000 10 25
BSF-160G-NH210 BSF-160G-NH210-B 2 160 1000 4600 37000 11 28
BSF-200G-NH210 BSF-200G-NH210-B 2 200 1000 9500 76000 13 32
BSF-250G-NH210 BSF-250G-NH210-B 2 250 1000 17000 136000 15 38
BSF-315G-NH310 BSF-315G-NH310-B 3 315 1000 32000 260000 18 44
BSF-355G-NH310 BSF-355G-NH310-B 3 355 1000 44,500 370000 18 46
BSF-400G-NH310 BSF-400G-NH310-B 3 400 1000 67500 550000 20 50


Download NH Battery Storage Fuse Links Datasheet



XL Battery Storage Fuse Links

Catalogue No. with knife blade                                          Catalogue No. with bolted blade                  Fuse body Size Rated Current (Amps) Rated Voltage (Vdc) Pre-arcing I2t Total I2t @1500Vdc Power Loss at 0.7 x In (W) Power loss at In (W)
BSF-250G-3XL15 BSF-250G-3XL15-B 3 250 1500 74,000 263000 20 49
BSF-315G-3XL15 BSF-315G-3XL15-B 3 315 1500 150000 533000 21 52
BSF-355G-3XL15 BSF-355G-3XL15-B 3 355 1500 195000 693000 24 59
BSF-400G-3XL15 BSF-400G-3XL15-B 3 400 1500 296000 1060000 24 61
BSF-450G-3XL15 BSF-450G-3XL15-B 3 450 1500 412000 1470000 27 67
BSF-500G-3XL15 BSF-500G-3XL15-B 3 500 1500 532000 1890000 29 73


Download XL Battery Storage Fuse Links Datasheet



GD Rectifiers is an official distributor for Eaton’s Bussmann series, a world lead in circuit protection. GD Rectifiers offers Bussmann’s comprehensive range of semiconductor fuses, including: high speed fuses, high voltage fuses, IEC and British Standard fuses, Industrial fuses, low voltage UL and CSA branch circuit fuses, medium voltage fuses and square body fuses.



For further information on Bussmann’s Battery Storage Fuse links, please contact GD Rectifiers on: 01444 243 452 / enquiries@gdrectifiers.co.uk.
