12.08.2020
August 2020 – New IXYS S6X8BBSRP Thyristor
Published on: 12/08/2020
Unsurpassed thyristor surge performance in the smaller footprint

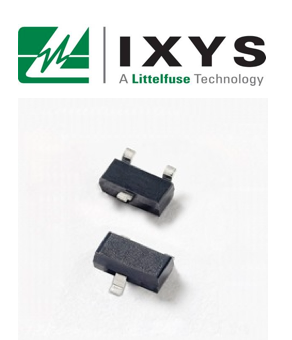

The new sensitive silicon-controlled rectifier (SCR) component series from IXYS: A Littlefuse Technology offers 600V Vdrm and 0.8 AIT(RMS) capability in a small TO23 package. It is specifically designed for fault interruption applications, such as Ground Fault Circuit Interrupter (GFCI), Residual Current Device (RCD), Arc Fault Circuit Interrupter (AFCI) and Combination Arc Fault Interrupter (CAFI).
S6X8BBSRP Thyristor Features
- Very compact SOT23 SMT package
- 50% smaller by area than comparable SOT89 package
- 80% smaller than SOT223 package
- Surge current capability up to 12A @ 60Hz
- Blocking voltage (Vdrm/Vrrm) capability – up to 600V
- High dv/dt noise immunity
- Improved turn-off time (tq) <25 µsec
GD Rectifiers is an authorised distributor for IXYS (now part of Littelfuse) and stocks their extensive range of power semiconductors including: diodes, IGBTs, MOSFETs, rectifier bridges, AC controlled thyristors, SiC power MOSFETs, SiC schottky diodes, switchable current regulators, thyristors and thyristor module accessories.
Download the IXYS Littelfuse S6X8BBSRP Datasheet
For further information on the new S6X8BBSRP thyristor or to receive a quote on any IXYS components, please call GD Rectifiers on: 01444 243 452 / enquiries@gdrectifiers.co.uk.
