August 2016 – Introducing Semikron’s SEMITRANS 10 Series

Published on: 18/08/2016

GD Rectifiers is excited to announce the launch of Semikron’s new SEMITRANS 10 series

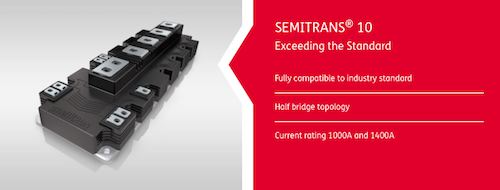

SEMIKRON semitrans 10 series

SEMITRANS 10

SEMITRANS 10 is a robust industrial standard package with copper baseplate and screw terminals for power connections. The SEMITRANS 10 package provides a low-inductance design supporting a product range of 1000A and 1400A in the 1700V class. High availability is ensured due to multiple IGBT sources and Semikron CAL diodes.



Direct Pressed Technology (DPD)

SEMITRANS 10 is the first standard package introducing Direct Pressed Die (DPD) technology. DPD could increase the output power by more than 30% compared to the standard SEMITRANS 10 and this is by sticking to the same IGBT & Diode technology.

  • Ultra low Rth design
  • Unreached output performance
  • Extended silicon real estate
  • Single AC terminal allowing easy upgrade of existing stack designs
  • Superb switching characteristics by optimised flex layer design
  • More output power @ lower losses
  • Pc greater than 200.000 cycles @dT 110K
  • TC greater than 1000 cycles @dT 165K



SEMIKRON SEMITRANS 10 Series



Benefits

  • Robust industrial standard package
  • Competitive second source IGBT
  • Optimised low stray inductance design for safe operation with high DC-link voltages
  • Unique low loss switching performance
  • Package architecture prepared for future high temperature chip generations



Applications

The proven package is designed for a broad range of applications such as regenerative inverters and power supplies requiring long service life and robustness by maintaining flexibility and scaling capabilities.



Product Range

The SEMITRANS 10 is available in 1700V both in 1000A and 1400A in a common industrial standard package.



The first standard package introducing Direct Pressed Die (DPD) technology. DPD could increase the output power by more than 30% compared to the standard SEMITRANS 10 and this by sticking to the same IGBT & Diode technology. Watch the full Semikron SEMITRANS 10 Series video here.



Key Features

Fully compatible to industry standard

  • Half bridge topology
  • Current rating 1000A and 1400A
  • Enhanced switching performance
  • Isolated copper baseplate using DBC
  • Integrated gate resistors
  • Integrated temperature sensor
  • High isolation voltage



GD Rectifiers are the UK’s official Semikron distributor, with over 50 years of experience, they are an ISO 9001:2008 registered company that design and develop bespoke power semiconductor assemblies to control voltage, current and frequency for international industrial markets.

For further information on all Semikron products click here or alternatively call our friendly sales team for a quote today on: 01444 243452.

Find out more about the latest GD Rectifiers product range here.
