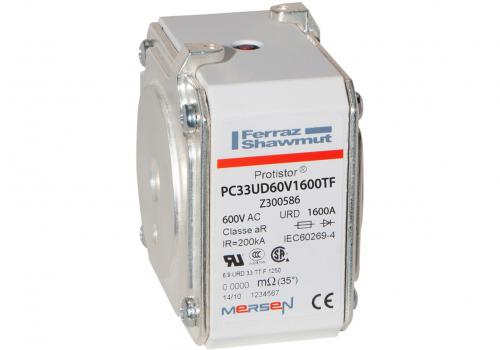

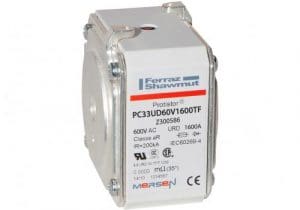

Z300586C High Speed Square Body Fuse 690V, 1600A

The Z300586C 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today’s power conversion equipment.

  • Fuse size 3
  • 690V, 1250A
  • Ideal for power rectifiers and converters
  • Class aR
  • Designed and tested to IEC 60269-4
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices.

Semiconductor protection fuses are used to protect against overcurrent in power electronic equipment. Semiconductor fuses are specifically designed to reduce the I2t, peak let-through current and arc voltages during a fault to protect and isolate semiconductor components such as diodes, thyristors and SCRs.

Certifications & Approvals
RoHS Compliant, UL Recognised, IEC Rated, CE Marked

Typical Applications

  • Semiconductors
  • DC common bus
  • DC drives
  • Power converters/rectifiers

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedREACH CompliantIEC Rated

Manufacturer

Applications

, ,

Compliance

CE Marked, RoHS Compliant

Certifications

IEC Rated, UL Recognised

Standards

IEC 60269-4

Rated Current (A)

1600A

Voltage Type

AC

Breaking Capacity

200kA

Clearing (I2t)

2900 kA2s

Product Type

High Speed Fuse, Square Body Fuse

Fuse Size/Group

3

Insulated metal gripping lugs (IMGL)

No

Rated Voltage (V)

690V
