V085624 In stock

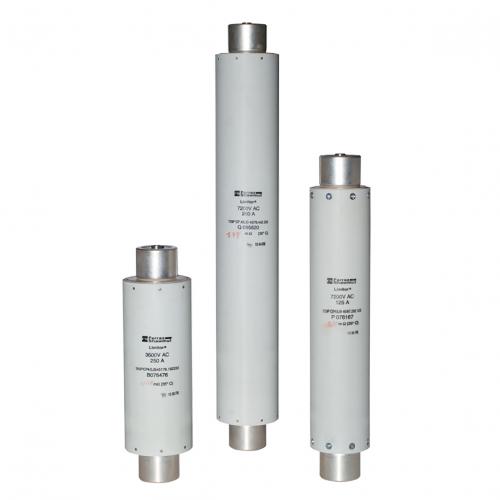

V085624 DIN High Voltage Fuse 7200V, 400A

The V085624 DIN high voltage fuse offers high speed switching, high breaking capacity and high current limitation with low power losses. These fuses are ideal for applications requiring high voltage motor protection and motor pump protection. They meet the IEC 60282-1, IEC 60644 and DIN 43625.

Features

  • High speed switching
  • Low inductance module structure
  • Energy efficient
  • High breaking capacity
  • Low power losses
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

HV fuse links for motor protection are specially designed to protect HV motors against the effect of short circuit current and support repeated peak currents through motor starting.

Semiconductor protection fuses are used to protect against overcurrent in power electronic equipment. Semiconductor fuses are specifically designed to reduce the I2t, peak let-through current and arc voltages during a fault to protect and isolate semiconductor components such as diodes, thyristors and SCRs.

Certifications & Approvals
Contact us for further information

Typical Applications

  • High voltage motor protection
  • High voltage motor pump protection

Refer to manufacturer’s datasheet for full technical information.

REACH Compliant

Manufacturer

Applications

,

Standards

IEC 60282-1, IEC 60644 DIN 43625

Rated Current (A)

400A

Rated Voltage (V)

7200V

Type of Fuse Status Indicator

Striker

Fuse Category

aSJB/D

Voltage Type

AC

Breaking Capacity

50kA

Clearing (I2t)

4100 kA2s

Product Type

High Voltage Fuse

Fuse Size/Group

3

Connection

Cylindrical

Mounting Method

Clip

Packaging Type

3

Mersen is a global expert in electrical specialties and advanced materials for high-tech industries. Leading experts in the safety and reliability of electrical equipment, Mersen offer global electrical protection solutions, manufacturing a specialist range of fuses and fusegear.

Formerly known as Ferraz Shawmut, Mersen offers a comprehensive range of North American (UL and CSA) and European IEC (DIN, NF, BS) fuses, fusegear and fuse systems.

Mersen’s products prevent the destruction of industrial and commercial electrical equipment, ensure an uninterrupted power supply and help to stabilise the electrical network. The company’s industrial fuses and all related accessories prevent short circuits, and surge protection devices help to protect against damage from power surges.

Mersen

Mersen, previously Ferraz Shawmut, is a leading manufacturer of circuit protection and offer a wide range of fuses that comply to various standards such as BS, IEC, DIN and many others. They also produce suitable fuse holders for easy access to replace blown fuses. They also have suitable microswitches and trip indicators available within their range.

Learn more about Mersen products by getting in touch with GD Rectifiers.
