170M5809D

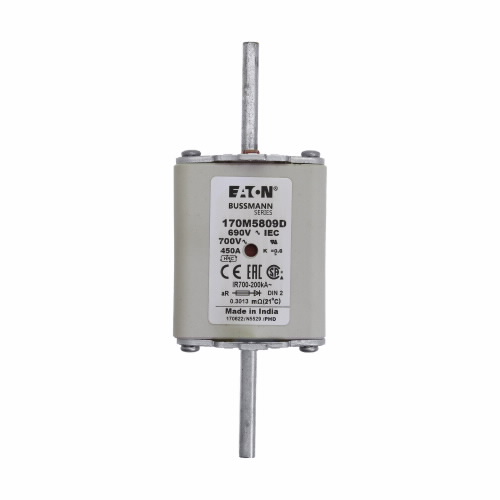

170M5809D High Speed Square Body Fuse 690V, 450A

The 170M5809D is a high speed square body fuse designed and tested to IEC 60269-4. It features excellent cycling capability and is suited to power converters and rectifiers.

  • Fuse size 2
  • Combination fuse status indicator
  • Ideal for power rectifiers and converters
  • Class aR
  • Designed and tested to IEC 60269-4

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Certifications & Approvals
RoHS Compliant, UL Recognised, IEC Rated, CE Marked

Typical Applications

  • Semiconductors
  • DC common bus
  • DC drives
  • Power converters/rectifiers

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedIEC Rated

Manufacturer

Applications

, , ,

Compliance

CE Marked, RoHS Compliant

Certifications

IEC Rated, UL Recognised

Standards

IEC 60269-4

Rated Current (A)

450A

Rated Voltage (V)

690V (IEC) 700V (UL)

Type of Fuse Status Indicator

Combination fuse status indicator

Fuse Category

aR (accompanied semiconductor protection)

Voltage Type

AC

Breaking Capacity

200kA

Clearing (I2t)

115000 A2s at 660V

Product Type

High Speed Fuse, Square Body Fuse

Fuse Size/Group

2

Insulated metal gripping lugs (IMGL)

No

Fuse Shape

knife blade contacts, Square body

Connection

Din 43-620 blade end x Din 43-620 blade end

Fuse Class

Class aR

Fitted with

Dual Indicator

Fuse Type

DIN 43620

Packaging

Standard
