170M5810D

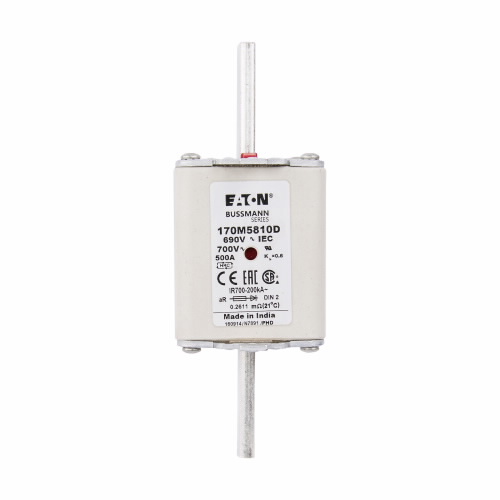

170M5810D High Speed Square Body Fuse 690V, 500A

The 170M5810D is a high speed square body fuse designed and tested to IEC 60269-4. It features excellent cycling capability and is suited to power converters and rectifiers.

  • Fuse size 2
  • Combination fuse status indicator
  • Ideal for power rectifiers and converters
  • Class aR
  • Designed and tested to IEC 60269-4

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Certifications & Approvals
RoHS Compliant, UL Recognised, IEC Rated, CE Marked

Typical Applications

  • Semiconductors
  • DC common bus
  • DC drives
  • Power converters/rectifiers

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedREACH CompliantIEC Rated

Manufacturer

Applications

, , ,

Compliance

CE Marked, RoHS Compliant

Certifications

IEC Rated, UL Recognised

Standards

IEC 60269-4

Rated Current (A)

500A

Rated Voltage (V)

690V (IEC) 700V (UL)

Type of Fuse Status Indicator

Combination fuse status indicator

Fuse Category

aR (accompanied semiconductor protection)

Voltage Type

AC

Breaking Capacity

200kA

Clearing (I2t)

155000 A2s at 660V

Product Type

High Speed Fuse, Square Body Fuse

Fuse Size/Group

2

Insulated metal gripping lugs (IMGL)

No

Fuse Shape

knife blade contacts, Square body

Connection

Din 43-620 blade end x Din 43-620 blade end

Fuse Class

Class aR

Fitted with

Dual Indicator

Fuse Type

DIN 43620

Packaging

Standard

Eaton Bussmann is a world leading manufacturer of circuit protection solutions. Formerly known as Cooper Bussmann, Eaton’s Bussmann series manufacture a wide range of circuit protection fuses, microswitches and trip indicators. Eaton reflects a long tradition of creating solutions that enhance electrical safety, reliability, code compliance and efficient power distribution.

Eaton Bussmann specialises in a comprehensive range of fuses including low voltage, high speed, high voltage and semiconductor fuses designed to provide innovative circuit and power electronics protection, serving the commercial, data center, electrical vehicle, food, and beverage markets.

Eaton Bussmann

Eaton’s Bussmann division is formerly known as Cooper Bussmann. Today, Eaton is a leading manufacturer of circuit protection solutions, and are especially known for their famous range of fuses.

They manufacture a wide range of circuit protection and semiconductor fuses, microswitches and trip indicators.

Learn more about Eaton Bussmann products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

eaton-bussmann-series-dual-indication-square-body-high-speed-fuses-datasheet-720101-en-gb.pdf

Product Catalogues

Product Catalogues

Eaton’s Bussmann® Series Fuses Full Line Catalogue

Product Catalogues

Eaton Bussmann Photvoltaic Fuses Catalogue

Product Catalogues

Eaton Bussmann Series Traction Fuses Catalogue

Product Catalogues

Eaton Bussmann Series NH Fuse Catalogue

Product Catalogues

Eaton Bussmann Circuit Protection Catalogue

Product Catalogues

Eaton Bussmann IEC High Speed Fuses Catalogue

Product Catalogues

Eaton Bussmann Full Line Fuses Catalogue

Product Catalogues

Eaton Bussmann IEC & British Standard Fuses Catalogue

Application Guides

Application Guides

Eaton Bussmann's Battery Storage Application Guide

Application Guides

Eaton Bussmann's EV Application Guide

Application Guides

Eaton Bussmann's Traction Fuses Application Guide

Application Guides

Eaton Bussmann's Automotive Aftermarket New Product Guide

White Paper

White Paper

The Science of Fuse Selection in the Rail Industry White Paper

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

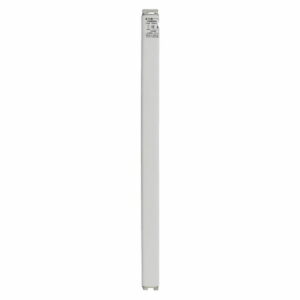

170M6094 High Speed Square Body Fuse 7200V, 130A

170M6094 High Speed Square Body Fuse 7200V, 130A

  • Download Datasheet
  • Parts List
  • Compare

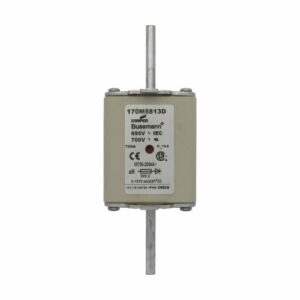

170M5813D High Speed Square Body Fuse 690V, 700A

170M5813D High Speed Square Body Fuse 690V, 700A

  • Download Datasheet
  • Parts List
  • Compare

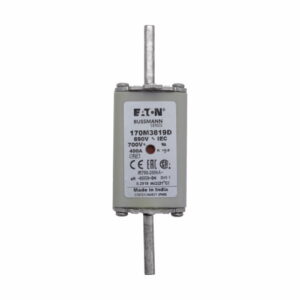

170M3819D High Speed Square Body Fuse 690V, 400A

170M3819D High Speed Square Body Fuse 690V, 400A

  • Download Datasheet
  • Parts List
  • Compare

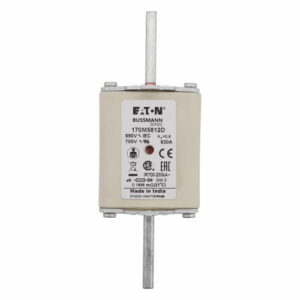

170M5812D High Speed Square Body Fuse 690V, 630A
