November 2016 – NEW IN: IXYS 60V TrenchT3 HiPerFET Power MOSFETs

Published on: 23/11/2016

Introducing the new IXYS 60V TrenchT3 HiPerFET Power MOSFETs exclusively available from GD Rectifiers

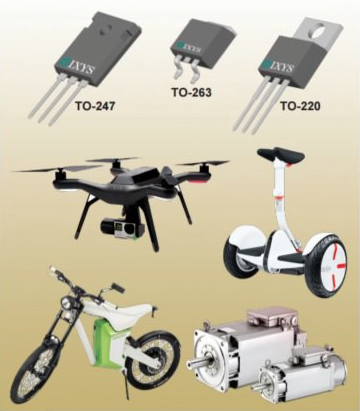

IXYS 60V TrenchT3 HiPerFET Power MOSFETs

This week IXYS have launched the new 60V Trench T3 HiPerFET Power MOSFETs which can be purchased exclusively from GD Rectifiers until the product is released by IXYS over the coming weeks.

IXYS 60V TrenchT3 HiPerFET Power MOSFETs Key Features:

  • Ultra low on-resistance RDS(on)
  • High current handling capability
  • Avalanche rated
  • Fast body diode
  • 175°C operating temperature
  • International standard packages



Advantages:

  • High power density
  • Easy to mount
  • Space savings



Typical Applications:

  • Off-line uninterruptible power supplies (UPS)
  • DC-DC converters
  • Brushed/brushless DC motor drive
  • High-current switching power supplies
  • Primary-side switches
  • Electric forklifts
  • Light electric vehicles (LEV)
  • Cordless home appliances and power tools
  • Unmanned aerial vehicles (UAV)



View the full IXYS product range here.

For further information on all IXYS parts please contact GD Rectifiers on: 01444 243 452 / enquiries@gdrectifiers.co.uk


Part Number VDSS



 (V)

ID25

TC=25 °C

(A)

RDS(on) max

TC=25°C (m Ω)

Qg(on)

typ

 (nC)

typ

 (Pf)

Trr

typ

(ns)

RthJC max

 (°C/W)

Po

Max

(W)

Package Type
IXFA220N06T3 60 220 4 136 8500 38 0.34 440 TO-263
IXFH220N06T3 60 220 4 136 8500 38 0.34 440 TO-247
IXFP220N06T3 60 220 4 136 8500 38 0.34 440 TO-220
IXFA270N06T3 60 270 3.1 200 12600 47 0.31 480 TO-263
IXFH270N06T3 60 270 3.1 200 12600 47 0.31 480 TO-247
IXFP270N06T3 60 270 3.1 200 12600 47 0.31 480 TO-220
