June 2013 – New IXYS Press-pack IGBT’s + high power sonic-FRD
Published on: 14/06/2013

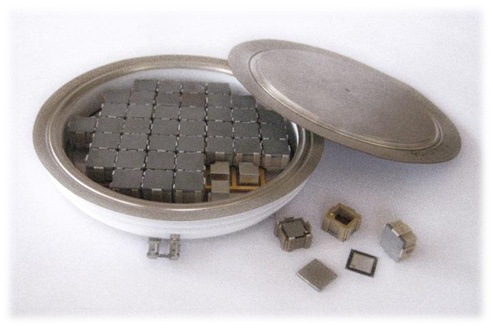

New IXYS Press-pack IGBT’s
With a track record spanning more than 10 years as a leading innovator in press-pack IGBT technology, IXYS UK now owned by Littelfuse is proud to offer their range of 2.5kV and 4.5kV devices featuring the latest generation chipset offering improved SOA.
This advanced technology is based on an enhanced planar cell design featuring the latest carrier enhancement techniques. Delivering comparable VCE(sat) to modern trench designs whilst retaining the superior RBSOA, SCSOA performance and easy driving characteristics of traditional planar technology. When combined with IXYS UK’s proven hermetic press-pack technology, these devices re-define the state-of-the-art for high power switching devices
Features and benefits
• Bondless construction for improved reliability.
• Hermetic devices suitable for all cooling options including direct liquid immersion.
• Explosion and rupture safe.
• High thermal cycling resistance.
• Double side cooling.
• Mechanically compatible with GTO thyristors, allowing upgrading of existing equipment and designs to new IGBT technology.
IGBT’s
VCES | IC | ICM | VCE(sat) | IGBT Switching | VF | Diode Recovery | TJM | RthJK | Fig. No. | |||||
IC=IC | Typical | IF=IC | Typical | IGBT | Diode | |||||||||
EON | EOFF | Irm | trr | Qr | ||||||||||
Part No. | V | A | A | V | J | J | V | A | µs | µC | °C | K/W | K/W | |
T0360NB25A | 2500 | 360 | 720 | 2.95 | 0.85 | 0.60 | 2.25 | 240.0 | 0.9 | 320.0 | 125 | 0.0541 | 0.0730 | W40 |
T0500NB25E | 2500 | 500 | 1000 | 2.90 | 1.20 | 0.84 | N/A | N/A | N/A | N/A | 125 | 0.0386 | N/A | W40 |
T0570VB25G | 2500 | 570 | 1140 | 2.95 | 1.40 | 0.95 | 2.05 | 320 | 1.6 | 450 | 125 | 0.0338 | 0.0365 | W67 |
T0850VB25E | 2500 | 850 | 1700 | 2.90 | 2.00 | 1.40 | N/A | N/A | N/A | N/A | 125 | 0.0225 | N/A | W67 |
T1200TB25A | 2500 | 1200 | 2400 | 3.00 | 2.80 | 2.00 | 2.50 | 660 | 1.1 | 950 | 125 | 0.0169 | 0.0292 | W41 |
T1500TB25E | 2500 | 1500 | 3000 | 2.90 | 3.70 | 2.60 | N/A | N/A | N/A | N/A | 125 | 0.0129 | N/A | W41 |
T2250AB25E | 2500 | 2250 | 4500 | 2.90 | 5.30 | 3.70 | N/A | N/A | N/A | N/A | 125 | 0.0085 | N/A | W71 |
T0160NB45A | 4500 | 160 | 320 | 3.40 | 1.10 | 0.70 | 3.75 | 120.0 | 2.7 | 300.0 | 125 | 0.0720 | 0.1720 | W40 |
T0240NB45E | 4500 | 240 | 480 | 3.80 | 1.50 | 1.10 | N/A | N/A | N/A | N/A | 125 | 0.0525 | N/A | W40 |
T0340VB45G | 4500 | 340 | 680 | 3.50 | 2.90 | 1.40 | 3.45 | 220 | 3.2 | 500 | 125 | 0.0364 | 0.0576 | W67 |
T0510VB45E | 4500 | 510 | 1020 | 3.60 | 4.20 | 2.10 | N/A | N/A | N/A | N/A | 125 | 0.0243 | N/A | W67 |
T0600TB45A | 4500 | 600 | 1200 | 3.70 | 4.60 | 2.90 | 3.90 | 640.0 | 1.2 | 700.0 | 125 | 0.0218 | 0.0432 | W41 |
T0800TB45E | 4500 | 800 | 1600 | 3.50 | 7.00 | 4.30 | N/A | N/A | N/A | N/A | 125 | 0.0156 | N/A | W41 |
T0800EB45G | 4500 | 800 | 1600 | 3.60 | 6.30 | 3.70 | 3.50 | 800 | 1.5 | 1020 | 125 | 0.0156 | 0.0247 | W44 |
T0900EB45A | 4500 | 900 | 1800 | 3.80 | 3.80 | 3.60 | 3.90 | 610 | 2.3 | 920 | 125 | 0.0140 | 0.0260 | W44 |
T1200EB45E | 4500 | 1200 | 2400 | 3.60 | 5.70 | 5.10 | N/A | N/A | N/A | N/A | 125 | 0.0080 | N/A | W44 |
T1600GB45G | 4500 | 1600 | 3200 | 3.50 | 14.00 | 8.70 | 3.45 | 1380 | 1.7 | 1970 | 125 | 0.0078 | 0.0123 | W45 |
T1800GB45A | 4500 | 1800 | 3600 | 3.60 | 12.60 | 9.50 | 3.90 | 1600 | 1.6 | 1850 | 125 | 0.0073 | 0.0144 | W45 |
T2400GB45E | 4500 | 2400 | 4800 | 3.60 | 15.00 | 14.00 | N/A | N/A | N/A | N/A | 125 | 0.0052 | N/A | W45 |
Drivers
Part No. | IGBT Type |
C0044BG400SBK | T0160NB45A |
C0044BG400SBL | T0240NB45E |
C0044BG400SBQ | T0340VB45G |
C0044BG400SBA | T0360NB25A |
C0044BG400SBB | T0500NB25E |
C0044BG400SBE | T0510VB45E |
C0044BG400SBF | T0570VB25G |
C0044BG400SBM | T0600TB45A |
C0044BG400SBG | T0800EB45G |
C0044BG400SBN | T0800TB45E |
C0044BG400SBH | T0850VB25E |
C0044BG400SBP | T0900EB45A |
C0044BG400SBR | T1200EB45E |
C0044BG400SBC | T1200TB25A |
C0044BG400SBD | T1500TB25E |
C0044BG400SBJ | T1600GB45G |
C0044BG400SBS | T1800GB45A |
C0044BG400SBV | T2250AB25E |
C0044BG400SBT | T2400GB45E |
Third generation high power sonic-FRD
Improved safe operating area (SOA) and reverse recovery characteristics for both 2.5kV and 4.5kV HP-sonic monolithic diode range complements our new asymmetric IGBT range and also supports such applications as multi-level diode clamped converters.
These diodes incorporate a unique manufacturing process and lifetime control to offer a class leading trade-off between conduction and switching losses. The wide SOA makes them ideal as freewheeling diodes for snubberless IGBT and IGCT applications.
Features
• Robust dynamic characteristics – di/dt> 4000A/µs
• 150°C operating junction temperature
• Soft fast recovery – no snap off
• Low recovery losses, low forward voltage drop
• Snubberless operation
Applications
• Anti-parallel diodes of IGBT’s and IGCT’s
• Clamp and snubber diodes
• Any application which requires a fast low loss diode
Ideally suited for:
- Traction
- Medium voltage drives
- Renewables
- Induction heating
- Pulsed power applications
Type | VRRM | Dimensions | |
A | B | ||
Part No. | V | mm | mm |
E0170YH40-45C | 4000 – 4500 | 25 | 42 |
E0280YH20-25C | 2000 – 2500 | 25 | 42 |
E0460QC40-45C | 4000 – 4500 | 38 | 60 |
E0660NC40-45C | 4000 – 4500 | 47 | 74 |
E0800QC20-25C | 2000 – 2500 | 38 | 60 |
E1200NC20-25C | 2000 – 2500 | 47 | 74 |
E1300VF40-45C | 4000 – 4500 | 63 | 100 |
E2250VF20-25C | 2000 – 2500 | 63 | 100 |
E2400TC40-45C | 4000 – 4500 | 75 | 112 |
E4000TC20-25C | 2000 – 2500 | 75 | 112 |
For a full pdf, please click here.
For all email enquiries, please click here or call the office on 01444 243452.
