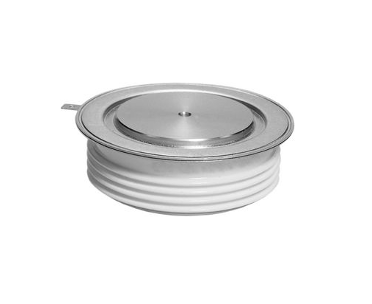

SKT 760/16E Capsule Thyristor 1600V, 760A
The SKT 760/16E is a capsule line thyristor made from a hermetic metal case with ceramic insulator. This device is suitable for DC motor control, controlled rectifiers and AC controllers.
- Hermetic metal case with ceramic insulator
- Capsule package for double sided cooling
- Shallow design with single sided cooling
- International standard case
- Off-state and reverse voltages up to 1600V
A thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. The device conducts when the gate receives a current trigger, and continue to conduct while they are forward biased, acting as bistable switches.
Discrete thyristors are available as stud screw-fit types for applications requiring robustness and easy assembly, and capsule (disc) types for high power applications. Thyristors are also known as Silicon-Controlled Rectifiers (SCRs).
The SKT 760/16E is ideal for machine tools, battery charging and temperature control applications.
Approvals
RoHS Compliant
Typical Applications
- DC Motor Control
- Controlled Rectifiers
- AC Controllers
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | |
| Maximum Repetitive Reverse Voltage (VRRM) | 1600V |
| Configuration | Single |
| Package/Case | B10 |
| Value for Fusing (I2t) | 1125000 A2s |
| Turn-off Time (Tq) | 200μs |
| Operating Junction Temperature (TJ) | -40°C to +125°C |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1700V |
| Drain Current (ID) at 45°C | 1700A |
| Mounting Style | Surface Mount |
| Product Type | Capsule Thyristor |
| Compliance | RoHS Compliant |
