Images are for reference only, see product specifications for full details

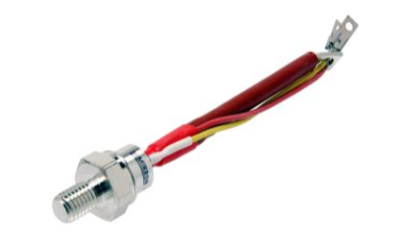

SKT 100/12E UNF Stud Thyristor 1200V, 100A
The SKT 100/12E UNF is a stud screw-fit line thyristor made from an international standard hermetic metal case with glass insulator. Ideal for controlled rectifiers, AC controllers and DC motor control.
- Hermetic metal case with glass insulator
- Threaded stud ISO M12 x 1.75 or 1/2″ – 20 UNF 2A
- Interchangeable with international standard case
- Ideal for DC motor control
- SKT series has a voltage range from 400-1800V
A thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. The device conducts when the gate receives a current trigger, and continue to conduct while they are forward biased, acting as bistable switches.
Discrete thyristors are available as stud screw-fit types for applications requiring robustness and easy assembly, and capsule (disc) types for high power applications. Thyristors are also known as Silicon-Controlled Rectifiers (SCRs).
The SKT 100/12E is ideal for battery charging, welding and plating equipment applications.
Approvals
RoHS Compliant
Typical Applications
- DC motor control
- Controlled rectifiers
- AC Controllers
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | |
| Maximum Repetitive Reverse Voltage (VRRM) | 1200V |
| Configuration | Single |
| Package/Case | B5 |
| Value for Fusing (I2t) | 20000 A2s |
| Turn-off Time (Tq) | 100μs |
| Drain Current (ID) at 50°C | 176A |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1300V |
| Operating Junction Temperature (TVJ) | -40°C to +130°C |
| Mounting Style | Stud Mount |
| Product Type | Stud Thyristor |
| Compliance | RoHS Compliant |
Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.
Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).
Semikron
Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.
Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.
Datasheet
SKT-10012E-Datasheet-1.pdf
Product Catalogues
Semikron Product Catalogue 2021/2022
Semikron Product Catalogue 2019
Semikron Semiconductors Application Manual
Product Flyers
Semikron Discrete Semiconductors Flyer
Semikron Power Electronics for Vehicles Flyer
Semikron Wind Operation & Maintenance Flyer
