SKT 340/16E In stock

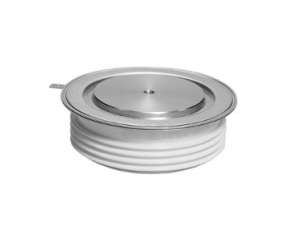

SKT 340/16E Capsule Thyristor 1600V, 340A

The SKT 340/16E is a capsule thyristor made from an international standard hermetic metal case with ceramic insulator. Ideal for controlled rectifiers, AC controllers and DC motor control.

  • Hermetic metal case with ceramic insulator
  • Capsule package for double side cooling
  • Shallow design with single sided cooling
  • International standard case
  • Off-state and reverse voltages up to 1800V
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

A thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. The device conducts when the gate receives a current trigger, and continue to conduct while they are forward biased, acting as bistable switches.

Discrete thyristors are available as stud screw-fit types for applications requiring robustness and easy assembly, and capsule (disc) types for high power applications. Thyristors are also known as Silicon-Controlled Rectifiers (SCRs).

The SKT 340/16E is ideal for battery charging, welding and plating equipment applications.

Approvals
RoHS Compliant

Typical Applications

  • DC motor control
  • Controlled rectifiers
  • AC Controllers

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, ,

Maximum Repetitive Reverse Voltage (VRRM)

1600V

Configuration

Single

Package/Case

B8

Value for Fusing (I2t)

162000 A2s

Maximum Surge On-state Current (ITSM) 25°C

5700A

Turn-off Time (Tq)

150μs

Drain Current (ID) at 45°C

420A

Maximum Non-Repetitive Reverse Voltage (VRSM)

1700V

Operating Junction Temperature (TVJ)

-40°C to +125°C

Mounting Style

Surface Mount

Product Type

Capsule Thyristor

Compliance

RoHS Compliant

Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.

Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).

Semikron

Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.

Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

SEMIKRON SKT 340-16E Datasheet.pdf
