SKKH 42/16E In stock

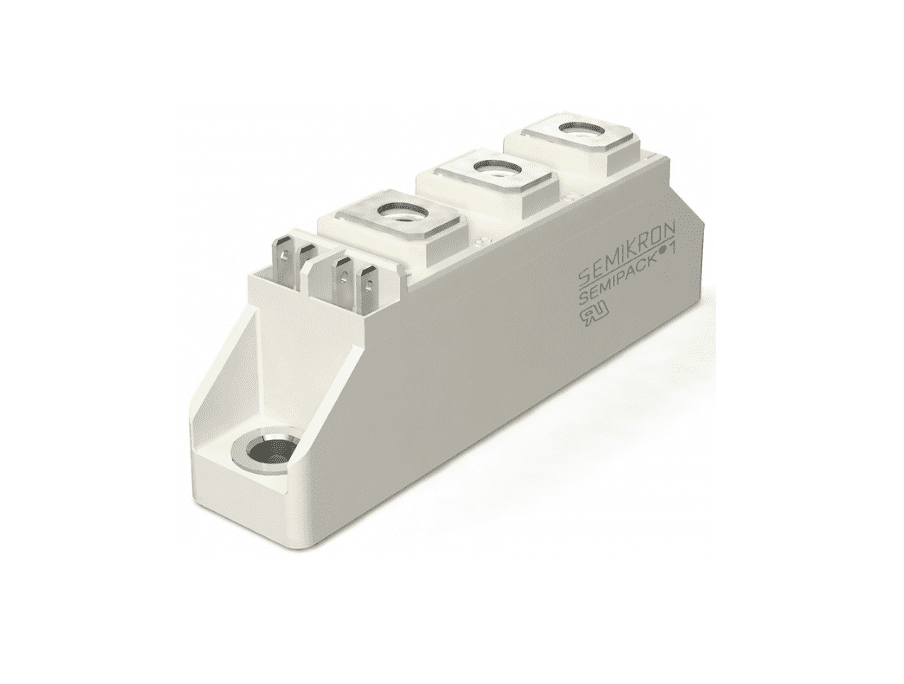

SKKH 42/16E Thyristor/Diode Module 1600V, 40A

The SKKH 42/16E thyristor/diode module is an industrial standard package from the SEMIPACK® 1 series.

  • Heat transfer through aluminium oxide ceramic isolated metal baseplate
  • Hard soldered joints for high reliability
  • UL recognised, file no. E63532
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The device provides heat transfer through an aluminium oxide ceramic isolated metal baseplate and is ideal for DC motor control, temperature control and professional light dimming.

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • DC motor control e.g. machine tools
  • Temperature control e.g. ovens, chemical processes
  • Professional light dimming e.g. studios and theaters

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, ,

Maximum Repetitive Reverse Voltage (VRRM)

1600V

Maximum Non-Repetitive Reverse Voltage (VRSM)

1700V

Maximum Average Forward Current (ITAV)

40A

RMS Forward Current IT(RMS)

75A

Package/Case

A47

Turn-off Time (Tq)

80μs

Minimum Gate Trigger Current (IGT)

150mA

Surge On-state Current (ITSM)

1000A

Direct Output Current (ID)

50/60A

Virtual Junction Temperature (TVJ)

-40°C to +125°C

Product Type

Thyristor/Diode Module

Compliance

RoHS Compliant, UL Recognised

Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.

Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).

Semikron

Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.

Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

SKKH-4216E-Datasheet.pdf

Product Catalogues

Product Catalogues

Semikron Product Catalogue 2021/2022

Product Catalogues

Semikron Product Catalogue 2019

Product Catalogues

Semikron Semiconductors Application Manual

Product Flyers

Product Flyers

Semikron Discrete Semiconductors Flyer

Product Flyers

Semikron Power Electronics for Vehicles Flyer

Product Flyers

Semikron Wind Operation & Maintenance Flyer
