SKKH 323/18E In stock

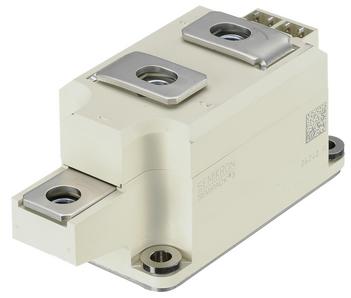

SKKH 323/18E Thyristor/Diode Module 1800V, 320A

The SKKH 323/18E thyristor/diode module is an industrial standard package with an electrically insulated baseplate.

  • Industry standard package
  • Heat transfer through aluminium oxide ceramic insulated metal baseplate
  • Electrically insulated base plate
  • Chip soldered on direct copper bonded Al2O3 ceramic
  • UL recognised, file no. E63532
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The thyristor/diode module is from the SEMIPACK® 3 series and provides heat transfer through an aluminium oxide ceramic insulated metal base plate and is ideal for DC motor control, temperature control and professional light dimming.

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • DC motor control e.g. machine tools
  • Temperature control e.g. ovens, chemical processes
  • Professional light dimming e.g. studios and theaters

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, ,

Maximum Repetitive Reverse Voltage (VRRM)

1800V

Maximum Non-Repetitive Reverse Voltage (VRSM)

1900V

Maximum Average Forward Current (ITAV)

320A

Package/Case

A47

Turn-off Time (Tq)

150μs

Minimum Gate Trigger Current (IGT)

150mA

Surge On-state Current (ITSM)

9500A

Junction Temperature (TJ)

-40°C to +130°C

Product Type

Thyristor/Diode Module

Compliance

RoHS Compliant, UL Recognised

Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.

Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).

Semikron

Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.

Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.
