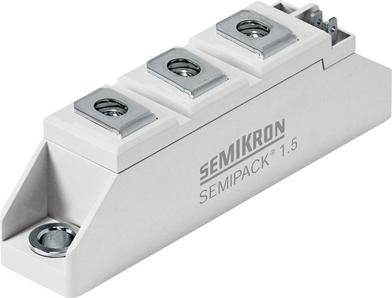

Images are for reference only, see product specifications for full details
SKKH 15/16E Thyristor/Diode Module 1600V, 15A
This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk
The device provides heat transfer through an aluminium oxide ceramic isolated metal base plate and is ideal for DC motor control, temperature control and professional light dimming.
Approvals
RoHS Compliant, UL Recognised
Typical Applications
- DC motor control e.g. machine tools
- Temperature control e.g. ovens, chemical processes
- Professional light dimming e.g. studios and theaters
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Chemical Processes, DC Motor Control, Professional Light Dimming, Temperature Control |
| Maximum Repetitive Reverse Voltage (VRRM) | 1600V |
| Maximum Non-Repetitive Reverse Voltage (VRSM) | 1700V |
| Maximum Average Forward Current (ITAV) | 13.5A |
| RMS Forward Current IT(RMS) | 24A |
| Package/Case | A47 |
| Turn-off Time (Tq) | 80μs |
| Maximum Gate Trigger Current (IGT) | 100mA |
| Surge On-state Current (ITSM) | 320A |
| Direct Output Current (ID) | 14A |
| Virtual Junction Temperature (TVJ) | -40°C to +125°C |
| Product Type | Thyristor/Diode Module |
| Compliance | RoHS Compliant, UL Recognised |
Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.
Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).
Semikron
Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.
Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.
Datasheet
Semikron SKKH 15-16E Datasheet.pdf
Product Catalogues
Semikron Product Catalogue 2021/2022
Semikron Product Catalogue 2019
Semikron Semiconductors Application Manual
Product Flyers
Semikron Discrete Semiconductors Flyer
Semikron Power Electronics for Vehicles Flyer
Semikron Wind Operation & Maintenance Flyer
