SKD 31/16

SKD 31/16 Bridge Rectifier 1600V, 31A

The SKD 31/16 power bridge rectifier has a blocking voltage of up to 1600V, features a high surge current rating and is ideal for DC power supplies.

  • Sturdy isolated metal base plate
  • Fast-on terminals with solder tips
  • Suitable for wave soldering
  • High surge current ratings
  • UL recognised, file no. E63532

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Offering single and three phase isolated bridge rectifiers for low to lower medium power applications. Standard and special topologies are available in various case and terminal designs. For voltages ranging from 200V to 2200V and currents ranging from 9A to 83A

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • DC power supply
  • Battery chargers
  • Non-controlled DC motor field supply

Refer to manufacturer’s datasheet for full technical information..

RoHS CompliantUL Recognised

Manufacturer

Applications

, ,

Maximum Repetitive Reverse Voltage (VRRM)

1600V

Drain Current (ID)

44A

Configuration

Single

Package/Case

G 26

Maximum Surge Forward Current (IFSM)

370A

Forward Voltage (VF)

1.75V

Operating Temperature (TVJ)

-40°C to +125°C

Value for Fusing (I2t)

685 A2s

Mounting Style

Screw Mount

Product Type

Bridge Rectifier

Compliance

RoHS Compliant, UL Recognised

Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.

Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).

Semikron

Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.

Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

Semikron SKD 31-16 Datasheet.pdf

Product Catalogues

Product Catalogues

Semikron Product Catalogue 2021/2022

Product Catalogues

Semikron Product Catalogue 2019

Product Catalogues

Semikron Semiconductors Application Manual

Product Flyers

Product Flyers

Semikron Discrete Semiconductors Flyer

Product Flyers

Semikron Power Electronics for Vehicles Flyer

Product Flyers

Semikron Wind Operation & Maintenance Flyer

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

SKD 82/16 Bridge Rectifier 1600V, 80A

SKD 82/16 Bridge Rectifier 1600V, 80A

  • Download Datasheet
  • Parts List
  • Compare

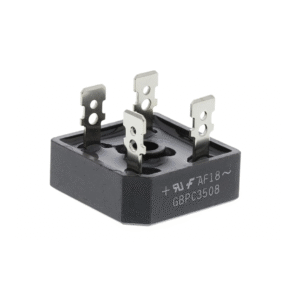

GBPC35-08 Bridge Rectifier 35A, 1000V

GBPC35-08 Bridge Rectifier 35A, 1000V

  • Download Datasheet
  • Parts List
  • Compare

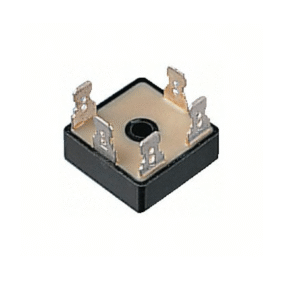

SKD 25/12 Bridge Rectifier 1200V, 20A
