SKD 25/12 In stock

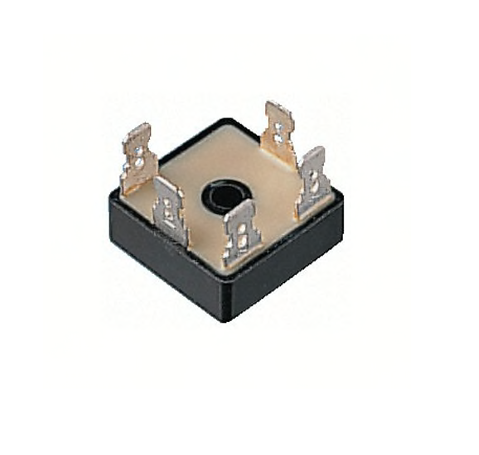

SKD 25/12 Bridge Rectifier 1200V, 20A

The SKD 25/12 bridge rectifier has a blocking voltage of up to 1200V, features a high surge current rating and is ideal for three phase rectifiers for power supplies.

  • Square plastic case with isolated metal base plate and fast-on connectors
  • Blocking voltage up to 1200V
  • High surge current
  • Easy chassis mounting
  • UL recognised, file no. E63532
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Offering single and three phase isolated bridge rectifiers for low to lower medium power applications. Standard and special topologies are available in various case and terminal designs. For voltages ranging from 200V to 2200V and currents ranging from 9A to 83A

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • Three phase rectifiers for power supplies
  • Input rectifiers for variable frequency drives
  • Rectifier for DC motor field supplies
  • Battery chargers

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

1200V

Drain Current (ID)

20A

Configuration

Single

Package/Case

G 11B

Maximum Surge Forward Current (IFSM)

370A

Forward Voltage (VF)

2.2V

Operating Temperature (TVJ)

-40°C to +150°C

Value for Fusing (I2t)

680 A2s

Mounting Style

Panel Mount

Product Type

Bridge Rectifier

Compliance

RoHS Compliant, UL Recognised

Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.

Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).

Semikron

Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.

Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

Semikron SKD 25-12 Datasheet.pdf
