Images are for reference only, see product specifications for full details

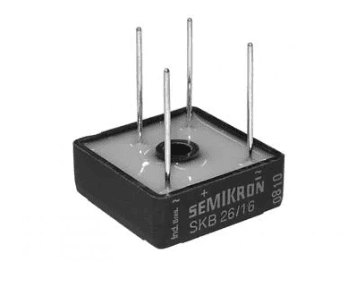

SKB 26/14 Bridge Rectifier 1400V, 18A
The SKB 26/14 power bridge rectifier has a blocking voltage of up to 1600V, features high surge currents and is ideal for printed circuit boards.
- Square plastic case with isolated metal baseplate and wire leads
- Ideal for printed circuit boards
- Blocking voltage up to 1600V
- High surge currents
- Easy chassis mounting
The SKB 26/14 device has notch moulded in casing for easy polarity identification and easy chassis mounting.
A bridge rectifier is a full-wave rectifier that uses four or more diodes in a bridge circuit configuration to convert alternating (AC) current to a direct (DC) current. Bridge rectifiers provide full-wave rectification from a two-wire AC input and offer weight and cost savings compared to a rectifier with a three-wire input.
Approvals
RoHS Compliant
Typical Applications
- Single phase rectifiers for power supplies
- Input rectifiers for variable frequency drives
- Rectifiers for DC motor field supplies
- Battery chargers
- Recommended snubber networks
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Battery Charger Rectifiers, Input rectifiers for variable frequency drives, Recommended Snubber Networks, Rectifiers for DC motor field supplies, Single phase rectifiers for power supplies |
| Maximum Repetitive Reverse Voltage (VRRM) | 1400V |
| Drain Current (ID) | 18A |
| Configuration | Single |
| Package/Case | G 50a |
| Maximum Surge Forward Current (IFSM) | 370A |
| Forward Voltage (VF) | 2.2V |
| Operating Temperature (TVJ) | -40°C to +150°C |
| Mounting Style | Through Hole |
| Product Type | Power Bridge Rectifier |
| Value for Fusing (I2t) | 680 A2s |
| Maximum Forward Voltage Drop (VF) | 2.2V |
| Reverse Recovery Time (trr) | 10μs |
Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.
Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).
Semikron
Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.
Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.
Datasheet
SKB-2614-Datasheet.pdf
Product Catalogues
Semikron Product Catalogue 2021/2022
Semikron Product Catalogue 2019
Semikron Semiconductors Application Manual
Product Flyers
Semikron Discrete Semiconductors Flyer
Semikron Power Electronics for Vehicles Flyer
Semikron Wind Operation & Maintenance Flyer
