GD17R12 In stock

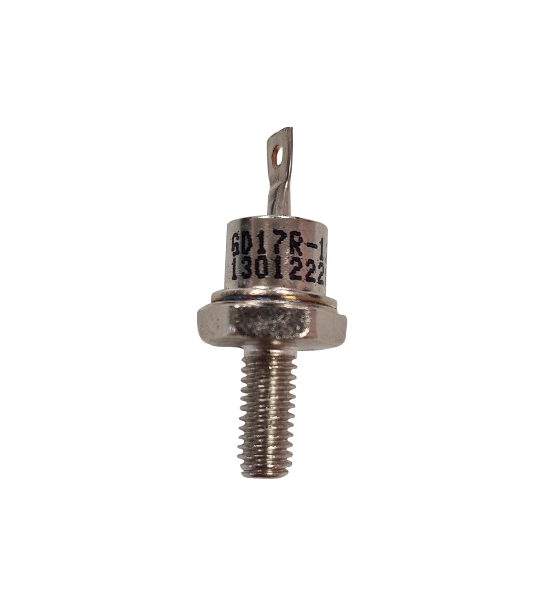

GD17R12 Standard Recovery Diode 1200V, 25A

The GD17R12 standard recovery diode features a voltage of 1200V and a current rating of 25A.

  • High surge current capability
  • Stud cathode and stud anode version
  • Wide current range
  • Types up to 1200V Vrrm
  • Suitable for a wide range of power supplies
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

This series of standard recovery diodes offer high surge current capability, a wide current range and are available in stud cathode and stud anode versions.

Approvals
RoHS Compliant

Typical Applications

  • Battery chargers
  • Converters
  • Power supplies
  • Machine tool controls

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

1200V

Average Forward Current (IFAV)

25A

RMS Forward Current (IFRMS)

40A

Maximum Surge Forward Current (IFSM)

356A

Value for Fusing (I2t)

636 A2s

Operating Temperature (TJ)

-65°C to 175°C

Low Level Value of Threshold Voltage VF(TO)1

0.80V

Low Level Value of Forward Slope Resistance (RF1)

6.8mΩ

Maximum Forward Voltage Drop (VFM)

1.30V

Maximum Thermal Resistance Junction to Case (RthJC)

1.5 K/W

Maximum Thermal Resistance Case to Heatsink (RthCS)

0.5 K/W

Package/Case

DO-203AA (DO-4)

Product Type

Standard Recovery Diode

Compliance

RoHS Compliant

With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.

The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.

The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.

GD Rectifiers

GD Rectifiers design and manufacture selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

We are one of the UK’s leading distributors of power electronic components and hold extensive stock of diodes, thyristors, IGBTs and MOSFETs from the world’s leading semiconductor manufacturers.

Learn more about our products by getting in touch with us.

Datasheet

Datasheet

GD-Rectifiers-GD17R12-Datasheet.pdf

Line Card

Line Card

GD Rectifiers Line Card 2023

Catalogue

Catalogue

GD Rectifiers Product Catalogue

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

GD150MN16 Stud Diode 1600V, 150A

GD150MN16 Stud Diode 1600V, 150A

  • Download Datasheet
  • Parts List
  • Compare

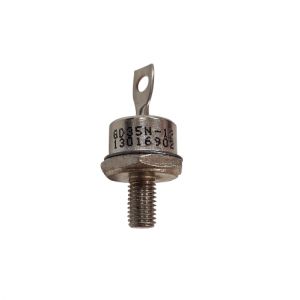

GD35N12 Standard Recovery Diode 1200V, 35A
