GD150R12 In stock

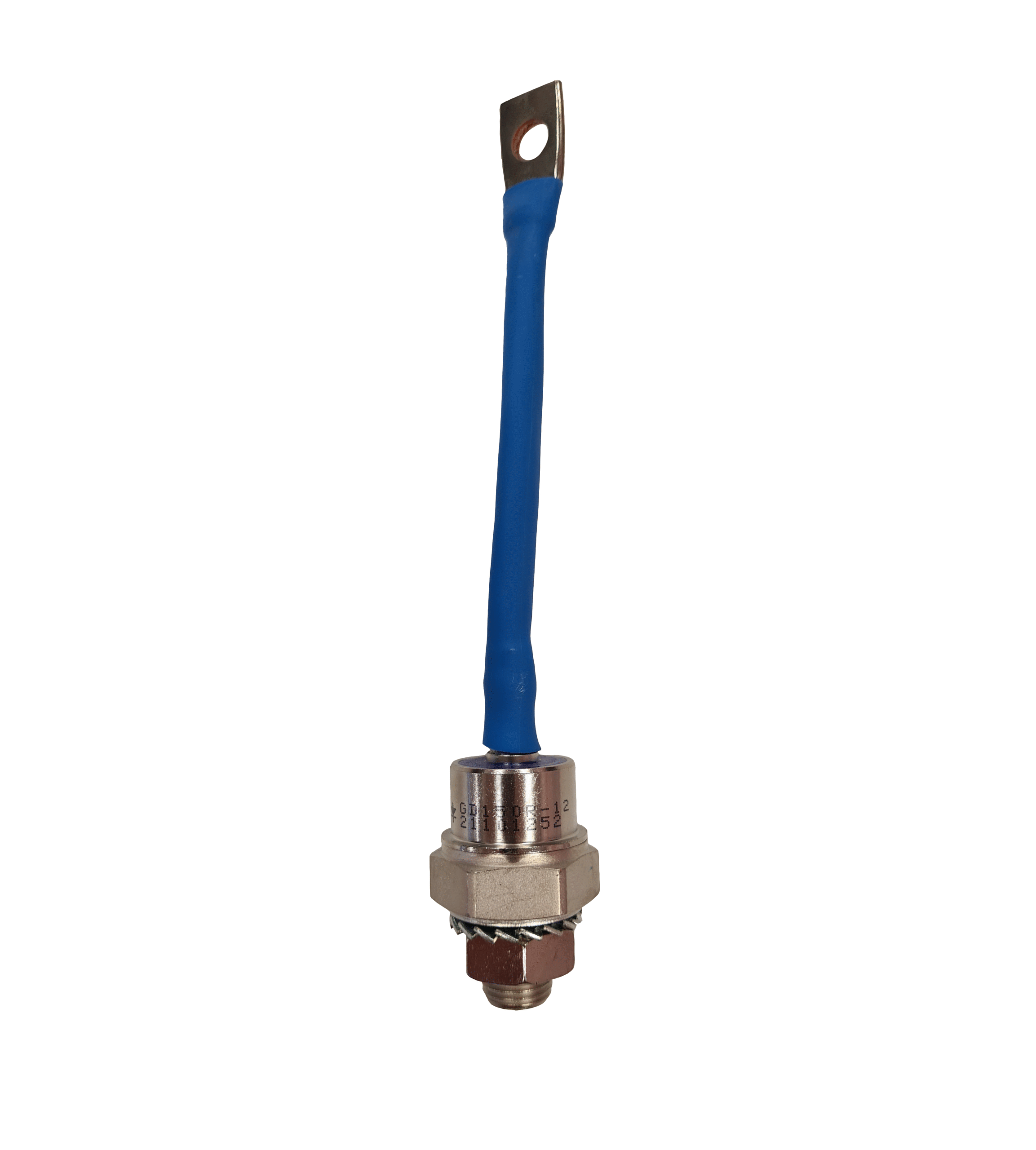

GD150R12 Stud Diode 1200V, 150A

The GD150R12 stud diode features a voltage of 1200V and a current rating of 150A.

  • Alloy diode
  • Stud cathode and stud anode version
  • Popular series for rough service
  • Voltage rating 1200V Vrrm
  • Suitable for a wide range of power supplies
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

This series of stud power diodes offer improved thermal behaviour, a wide current range and are available in stud cathode and stud anode versions.

Approvals
RoHS Compliant

Typical Applications

  • Battery chargers
  • Welders
  • Power supplies
  • Motor controls
  • General industrial current rectification

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , , ,

Maximum Repetitive Reverse Voltage (VRRM)

1200V

RMS Forward Current (IFRMS)

235A

Maximum Surge Forward Current (IFSM)

3570A

Value for Fusing (I2t)

64000 A2s

Operating Temperature (TJ)

-40°C to 200°C

Low Level Value of Threshold Voltage VF(TO)1

0.67V

Low Level Value of Forward Slope Resistance (RF1)

1.42mΩ

Maximum Forward Voltage Drop (VFM)

1.33V

Package/Case

DO-30

Product Type

Stud Diode

Compliance

RoHS Compliant

With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.

The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.

The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.

GD Rectifiers

GD Rectifiers design and manufacture selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

We are one of the UK’s leading distributors of power electronic components and hold extensive stock of diodes, thyristors, IGBTs and MOSFETs from the world’s leading semiconductor manufacturers.

Learn more about our products by getting in touch with us.
