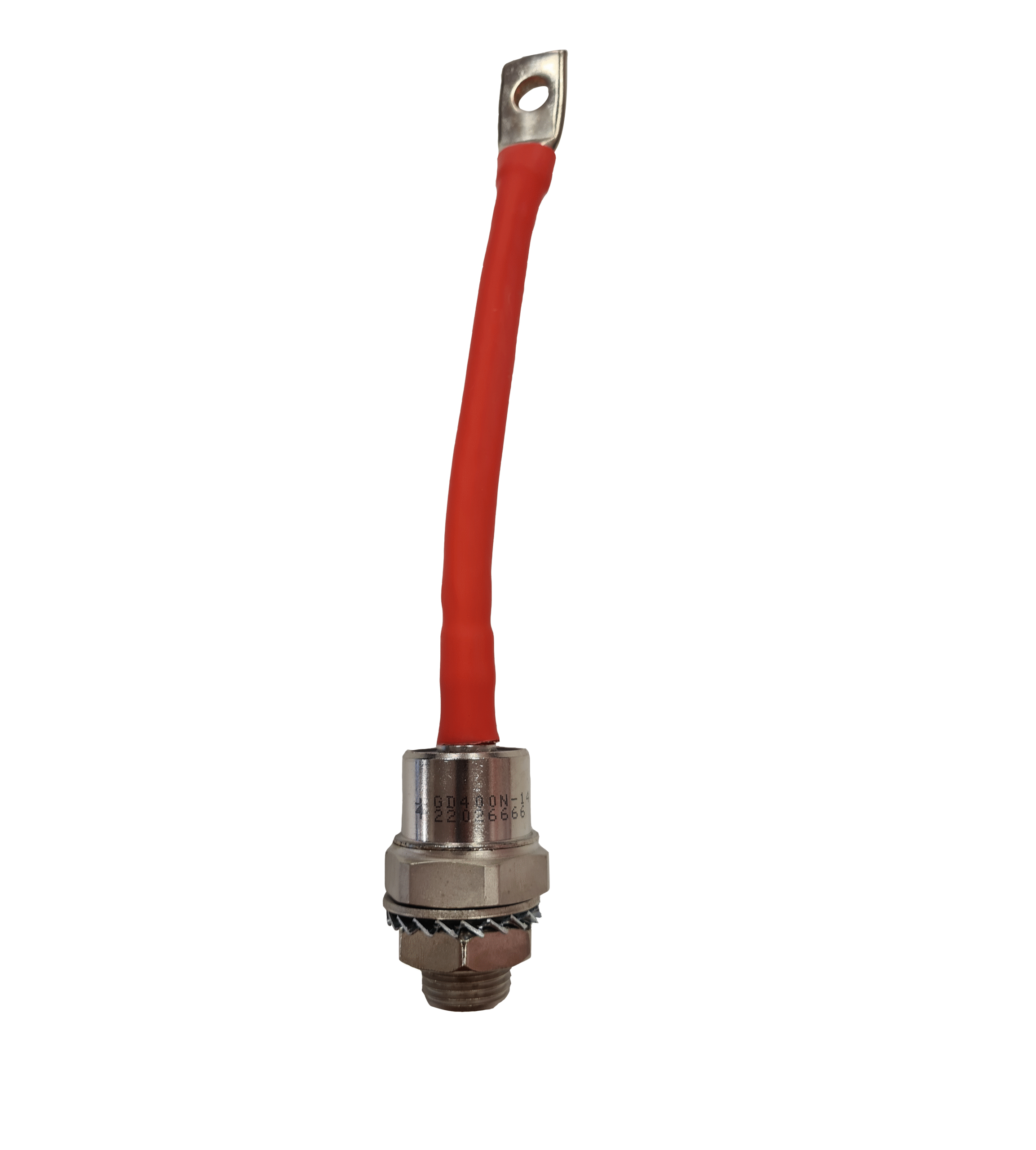

GD400N14 Stud Diode 1400V, 400A
The GD400N14 stud diode features a voltage of 1400V and a current rating of 400A.
- Hermetic metal to glass case insulation
- High surge current capabilities
- Stud cathode and stud anode version
- Voltage rating 1400V Vrrm
- Suitable for a wide range of power supplies
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
Product Details
This series of devices offer improved thermal behaviour, high surge current capabilities and are available in stud cathode and stud anode versions.
Approvals
RoHS Compliant
Typical Applications
- Converters
- Power supplies
- Machine tool controls
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | |
| Maximum Repetitive Reverse Voltage (VRRM) | 1400V |
| RMS Forward Current (IFRMS) | 640A |
| Maximum Surge Forward Current (IFSM) | 8250A |
| Value for Fusing (I2t) | 340 kA2s |
| Operating Temperature (TJ) | -40°C to 180°C |
| Threshold Voltage (VT0) | 0.77V |
| Forward Slope Resistance (rT) | 0.49mΩ |
| Maximum Forward Voltage Drop (VFM) | 1.22V |
| Package/Case | DO 205-AB (DO-9) |
| Product Type | Stud Diode |
| Compliance | RoHS Compliant |
With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.
The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.
The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
