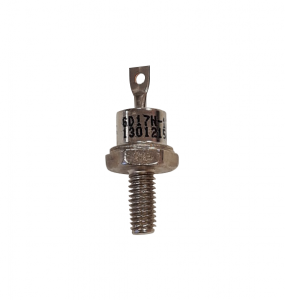

GD17N12 Standard Recovery Diode 1200V, 25A
Product Details
This series of standard recovery diodes offer high surge current capability, a wide current range and are available in stud cathode and stud anode versions.
Approvals
RoHS Compliant
Typical Applications
- Battery chargers
- Converters
- Power supplies
- Machine tool controls
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Battery Chargers, Converters, Machine Tool Controls, Power Supplies |
| Maximum Repetitive Reverse Voltage (VRRM) | 1200V |
| RMS Forward Current (IFRMS) | 40A |
| Maximum Surge Forward Current (IFSM) | 356A |
| Value for Fusing (I2t) | 636 A2s |
| Operating Temperature (TJ) | -65°C to 175°C |
| Low Level Value of Threshold Voltage VF(TO)1 | 0.80V |
| Low Level Value of Forward Slope Resistance (RF1) | 6.8mΩ |
| Maximum Forward Voltage Drop (VFM) | 1.30V |
| Maximum Thermal Resistance Junction to Case (RthJC) | 1.5 K/W |
| Maximum Thermal Resistance Case to Heatsink (RthCS) | 0.5 K/W |
| Package/Case | DO-203AA (DO-4) |
| Product Type | Standard Recovery Diode |
| Compliance | RoHS Compliant |
With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.
The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.
The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
