170M1564D HT In stock

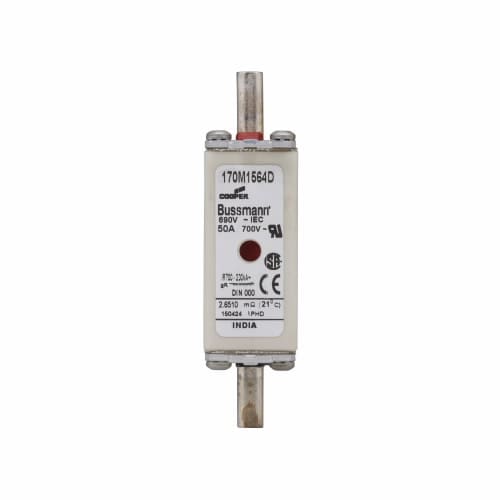

170M1564D High Speed Square Body Fuse 690V, 50A

The 170M1564D is a high speed square body fuse designed and tested to IEC 60269-4. It features excellent cycling capability and is suited to semiconductor applications.

  • Fuse size 000
  • Combination fuse status indicator
  • 50A, 200 kAIC
  • Class gR, aR
  • Designed and tested to IEC 60269
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Certifications & Approvals
RoHS Compliant, UL Recognised (survival only), IEC Rated, CE Marked, CSA

Typical Applications
Designed to protect

  • UPS
  • Soft starters
  • Solid state relays
  • Variable speed drives
  • Rectifiers
  • Inverters

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedIEC Rated

Manufacturer

Applications

, , , , ,

Compliance

CE Marked, CSA, RoHS Compliant

Certifications

IEC Rated, UL Recognised

Standards

IEC 60269-4

Rated Current (A)

50A

Rated Voltage (V)

690V (IEC), 700V (UL)

Type of Fuse Status Indicator

Combination fuse status indicator

Fuse Category

gR (general purpose semiconductor protection)

Voltage Type

AC

Breaking Capacity

200kA

Clearing (I2t)

815 A2s at 660V

Product Type

High Speed Fuse, Square Body Fuse

Fuse Size/Group

000

Insulated metal gripping lugs (IMGL)

No

Fuse Shape

knife blade contacts, Square body

Connection

Din 43-620 blade end x Din 43-620 blade end

Fuse Class

Class gR Class aR

Fitted with

Dual Indicator

Fuse Type

DIN 43620

Packaging Type

Standard

Eaton Bussmann is a world leading manufacturer of circuit protection solutions. Formerly known as Cooper Bussmann, Eaton’s Bussmann series manufacture a wide range of circuit protection fuses, microswitches and trip indicators. Eaton reflects a long tradition of creating solutions that enhance electrical safety, reliability, code compliance and efficient power distribution.

Eaton Bussmann specialises in a comprehensive range of fuses including low voltage, high speed, high voltage and semiconductor fuses designed to provide innovative circuit and power electronics protection, serving the commercial, data center, electrical vehicle, food, and beverage markets.

Eaton Bussmann

Eaton’s Bussmann division is formerly known as Cooper Bussmann. Today, Eaton is a leading manufacturer of circuit protection solutions, and are especially known for their famous range of fuses.

They manufacture a wide range of circuit protection and semiconductor fuses, microswitches and trip indicators.

Learn more about Eaton Bussmann products by getting in touch with GD Rectifiers.
