12LCT HT In stock

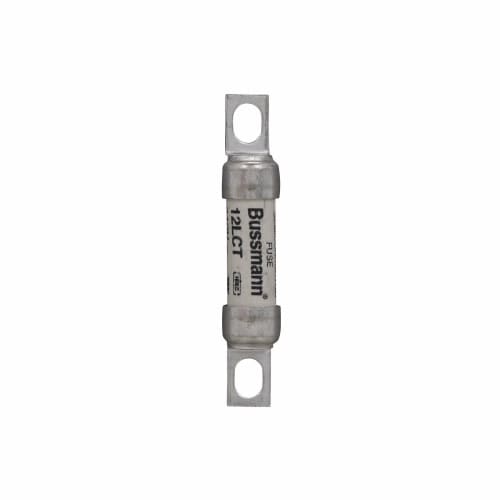

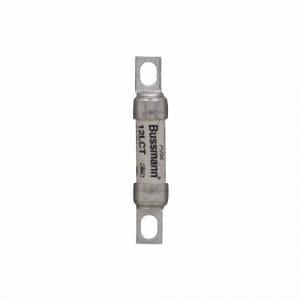

12LCT High Speed British Standard Fuse 240V, 12A

The 12LCT is a high speed British standard fuse featuring excellent cycling capability and suited to power converters, rectifiers and reduced voltage starters.

  • Excellent cycling capability and DC performance
  • Low arc voltage and low energy let-through (I2t)
  • Ultra fast fuse
  • Ideal for DC drives
  • Stud mounted
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The offset bolted tag design is compatible with many industrial distribution panels and fuse holders and provides a secure terminal connection.

Bussmann series fuses play a major role in industrial or commercial facilities by providing reliable, maximum protection to power systems. Their physical size or rejection features prevent replacing a fuse with one from another fuse class. This helps ensure the correct replacement fuse is always installed and the voltage and interrupting ratings remain the same.

Certifications & Approvals
RoHS Compliant, UL Recognised, IEC Rated, CE Marked

Typical Applications

  • DC common bus
  • DC drives
  • Power converters/rectifiers
  • Reduced voltage starters

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedREACH CompliantIEC Rated

Manufacturer

Applications

, , ,

Compliance

CE Marked, RoHS Compliant

Certifications

IEC Rated, UL Recognised

Standards

BS88-4 IEC 60269-4

Rated Current (A)

12A

Rated Voltage (V)

240V

Rated Switching Capacity

200kA

Type of Fuse Status Indicator

None

Fuse Category

aR (accompanied semiconductor protection)

Voltage Type

AC/DC

Breaking Capacity

200kA

Clearing (I2t)

32 A2s

Product Type

British Standard Fuse, High Speed Fuse

Fuse Size/Group

BS88

Insulated metal gripping lugs (IMGL)

No

Fuse Shape

Offset bolted tags

Connection

Blade end x blade end

Mounting Method

Stud

Mounting Dimension

M6

Packaging Type

Standard

Eaton Bussmann is a world leading manufacturer of circuit protection solutions. Formerly known as Cooper Bussmann, Eaton’s Bussmann series manufacture a wide range of circuit protection fuses, microswitches and trip indicators. Eaton reflects a long tradition of creating solutions that enhance electrical safety, reliability, code compliance and efficient power distribution.

Eaton Bussmann specialises in a comprehensive range of fuses including low voltage, high speed, high voltage and semiconductor fuses designed to provide innovative circuit and power electronics protection, serving the commercial, data center, electrical vehicle, food, and beverage markets.

Eaton Bussmann

Eaton’s Bussmann division is formerly known as Cooper Bussmann. Today, Eaton is a leading manufacturer of circuit protection solutions, and are especially known for their famous range of fuses.

They manufacture a wide range of circuit protection and semiconductor fuses, microswitches and trip indicators.

Learn more about Eaton Bussmann products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

eaton-bussmann-series-lct-let-lmt-lmmt-fuses-datasheet-720004.pdf

Product Catalogues

Product Catalogues

Eaton’s Bussmann® Series Fuses Full Line Catalogue

Product Catalogues

Eaton Bussmann Photvoltaic Fuses Catalogue

Product Catalogues

Eaton Bussmann Series Traction Fuses Catalogue

Product Catalogues

Eaton Bussmann Series NH Fuse Catalogue

Product Catalogues

Eaton Bussmann Circuit Protection Catalogue

Product Catalogues

Eaton Bussmann IEC High Speed Fuses Catalogue

Product Catalogues

Eaton Bussmann Full Line Fuses Catalogue

Product Catalogues

Eaton Bussmann IEC & British Standard Fuses Catalogue

Application Guides

Application Guides

Eaton Bussmann's Battery Storage Application Guide

Application Guides

Eaton Bussmann's EV Application Guide

Application Guides

Eaton Bussmann's Traction Fuses Application Guide

Application Guides

Eaton Bussmann's Automotive Aftermarket New Product Guide

White Paper

White Paper

The Science of Fuse Selection in the Rail Industry White Paper
