100FE HT In stock

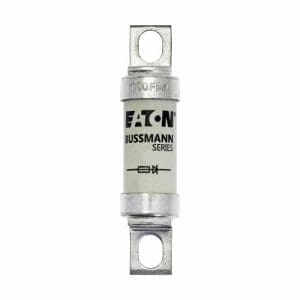

100FE High Speed British Standard Fuse 690V, 100A

The 100FE fuse is designed and tested to BS88-4 and IEC 60269-4 and is used to protect components such as power inverters and converters within the electrical circuit.

  • High speed fuse link
  • AC 690V, DC 500V
  • Breaking capacity 200 kA
  • Power loss at rated circuit 23W
  • Standard/approval BS
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The Type T fuse features a thin element and 200kA breaking capacity, which means it blows quickly to stop the flow of electricity and prevent damage from short circuits.

The offset bolted tag design is compatible with many industrial distribution panels and fuse holders and provides a secure terminal connection.

Certifications & Approvals
RoHS Compliant, UL Recognised, IEC Rated, CE Marked

Typical Applications

  • DC common bus
  • DC drives
  • Power converters/rectifiers
  • Reduced voltage starters

Refer to manufacturer’s datasheet for full technical information.

CE MarkedRoHS CompliantUL RecognisedREACH CompliantIEC Rated

Manufacturer

Applications

, , ,

Compliance

CE Marked, RoHS Compliant

Certifications

IEC Rated, UL Recognised

Standards

BS88-4, IEC 60269-4

Rated Current (A)

100A

Rated Voltage (V)

690V

Rated Switching Capacity

200kA

Type of Fuse Status Indicator

None

Fuse Category

aR (accompanied semiconductor protection)

Voltage Type

AC/DC

Breaking Capacity

200kA

Clearing (I2t)

2800 A2s

Product Type

British Standard Fuse, High Speed Fuse

Fuse Size/Group

BS88

Insulated metal gripping lugs (IMGL)

No

Fuse Shape

Offset bolted tags

Connection

Blade end x blade end

Mounting Method

Stud

Mounting Dimension

M8

Packaging Type

Standard

Eaton Bussmann is a world leading manufacturer of circuit protection solutions. Formerly known as Cooper Bussmann, Eaton’s Bussmann series manufacture a wide range of circuit protection fuses, microswitches and trip indicators. Eaton reflects a long tradition of creating solutions that enhance electrical safety, reliability, code compliance and efficient power distribution.

Eaton Bussmann specialises in a comprehensive range of fuses including low voltage, high speed, high voltage and semiconductor fuses designed to provide innovative circuit and power electronics protection, serving the commercial, data center, electrical vehicle, food, and beverage markets.

Eaton Bussmann

Eaton’s Bussmann division is formerly known as Cooper Bussmann. Today, Eaton is a leading manufacturer of circuit protection solutions, and are especially known for their famous range of fuses.

They manufacture a wide range of circuit protection and semiconductor fuses, microswitches and trip indicators.
