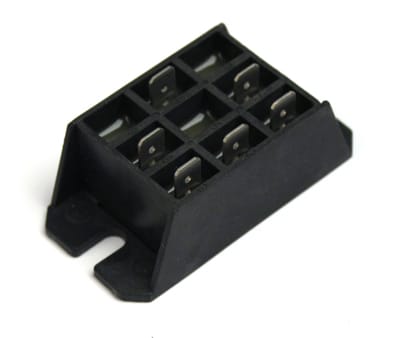

VHF28-08IO5

VHF28-08IO5 Half Controlled Single Phase Rectifier Bridge 800V, 32A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The VHF28-08IO5 is a half controlled single phase rectifier bridge with a freewheeling diode and has a voltage of 800V and a current of 32A. The half controlled single phase rectifier bridge offers improved thermal behaviour, has a low forward voltage drop and is UL registered E72873.

  • Planar passivated chips
  • Space and weight savings
  • Improved temperature and power cycling
  • Package with DCB ceramic base plate
  • Isolation voltage 3600V

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The VHF28-08IO5 is easy to mount with two screws, offers improved temperature and power cycling and provides space and weight savings.

Bridge rectifiers are popular devices and are known for converting an Alternating Current (AC) input into Direct Current a (DC) output. Diode bridges feature an arrangement of four diodes in a bridge circuit configuration, providing the same polarity of output for either polarity of input.

Approvals
UL Registered E72873, RoHS Compliant

Typical Applications

  • Supplies for DC power equipment
  • DC motor control

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

800V

Maximum Average DC Output Current ID(AV)M

32A

Maximum Surge Forward Current (IFSM)

300A

Maximum Non-Repetitive Reverse Blocking Voltage (VRSM)

900V

Reverse Current (IR)

0.3mA

Forward Voltage Drop (VF)

1.6V

Value for Fusing (I2t)

440 A2s

RMS Forward Current (IFRMS)

23A

Operating Temperature (TVJ)

-40°C to +125°C

Mounting Style

Screw Mount

Package/Case

FO-F-A

Product Type

Half Controlled Rectifier Bridge, Rectifier Bridge

Compliance

RoHS Compliant, UL Registered E72873

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
