SKKT 42B16E

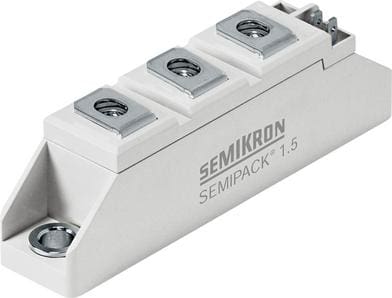

SKKT 42B16E Thyristor/Diode Module 1600V, 40A

The SKKT 42B16E thyristor/diode module provides heat transfer through an aluminium oxide ceramic isolated metal baseplate and is ideal for DC motor control and AC motor starter applications.

  • Heat transfer through aluminium oxide ceramic isolated metal baseplate
  • Hard soldered joints for high reliability
  • UL recognised, file no. E 63 532

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The thyristor/diode modules are offered in a variety of dual and single topologies. With blocking voltages of up to 2200V, SEMIKRON offers a solution for most phase control or rectifier applications. Thanks to the comprehensive product range, the optimum solution can be found for every application.

Approvals
RoHS Compliant
UL Recognised

Typical Applications

  • DC motor control (e.g.for machine tools)
  • AC motor soft starters
  • Temperature control (e.g.for ovens, chemical processes)
  • Professional light dimming (studios, theaters)

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, , , ,

Maximum Repetitive Reverse Voltage (VRRM)

1600V

Maximum Non-Repetitive Reverse Voltage (VRSM)

1700V

Maximum Average Forward Current (ITAV)

40A

RMS Forward Current IT(RMS)

75A

Package/Case

A48

Turn-off Time (Tq)

80μs

Minimum Gate Trigger Current (IGT)

150mA

Surge On-state Current (ITSM)

1000A

Direct Output Current (ID)

50A

Virtual Junction Temperature (TVJ)

-40°C to +125°C

Product Type

Thyristor/Diode Module

Compliance

RoHS Compliant, UL Recognised

Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.

Typical applications include power supplies, renewable energies (wind and solar power) and electric vehicles (private cars, vans, buses, lorries, forklift trucks, and more).

Semikron

Semikron Danfoss is a leading global semiconductor manufacturer and focuses on new markets such as renewable energy and hybrid vehicles as well as industrial applications such as electric drives, welding machines, lifts, power supplies, pumps, conveyor belts, trains and trams.

Learn more about Semikron Danfoss products by getting in touch with GD Rectifiers.
