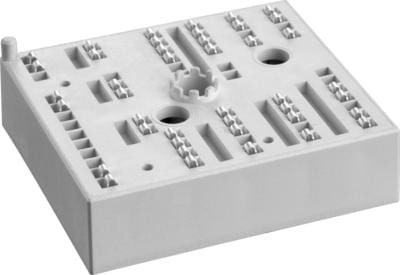

SKiiP 24AC126V1 IGBT Module 1200V, 52A
The SKiiP 24AC126V1 IGBT module features fast trench IGBTs, robust and soft freewheeling diodes in CAL technology and highly reliable spring contacts for electrical connections.
- UL recognised file no. E63532
- Voltage up to 1200V
- Robust and soft freewheeling diodes in CAL technology
- Highly reliable spring contacts for electrical connections
SKiiP IGBT modules are Intelligent power modules (IPM) for increased reliability, integration and power density.
SEMIKRON offers IGBT modules in SEMITRANS, SEMiX, SKiM, MiniSKiiP and SEMITOP packages in various topologies, current ratings and voltage ratings. From 4A up to 1400A, with voltage classes from 600V up to 1700V, the IGBT modules are used in a variety of applications. They feature key technologies such as sintering and spring or press-fit contacts for quick and easy assembly.
Approvals
RoHS Compliant
Typical Applications
- Inverters up to 19kVA
- Typical motor power 11kW
Refer to manufacturer’s datasheet for full technical information.
Images are for reference only, see product specifications for full details.
| Manufacturer | |
|---|---|
| Applications | |
| Collector Emitter Voltage (VCES) | 1200V |
| Collector Current (IC) at 25°C | 52A |
| Maximum DC Gate Voltage (VGES) | ±20V |
| Collector Emitter Saturation Voltage VCE(sat) | 2.1V |
| Turn-on time Td(on) | 80ns |
| Turn-off time Td(off) | 435ns |
| Package/Case | MiniSKiiP® 2 |
| Operating Junction Temperature (TJ) | -40°C to +150°C |
| Mounting Style | Screw Mount |
| Maximum Forward Voltage Drop (VF) | 2.1V |
| Isolated Base | Yes |
| Product Type | Three Phase IGBT Module |
| Compliance | RoHS Compliant, UL Recognised |
