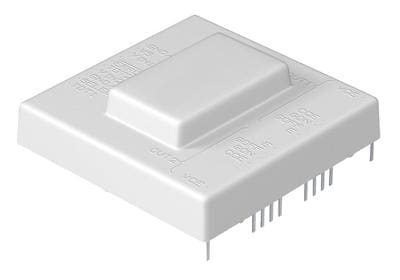

SKHI 22A R IGBT Driver 1700V, 20A
The SKHI 22A R is a dual SEMIDRIVER™ Hybrid Driver for half-bridge IGBT modules. The device is available with standard isolation (isolation testing voltage 4000VAC, 2 seconds).
- Two output channels
- Integrated power supply on the secondary sides
- CMOS compatible inputs
- Short circuit protection by VCE monitoring and switch off
- Drive interlock top/bottom
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
The new driver generation consists of a hybrid component which can directly be mounted to the PCB. All devices necessary for driving, voltage supply, error monitoring and potential separation are integrated in the driver.
Features
-
- Two output channels
- Integrated power supply on the secondary sides
- CMOS compatible inputs
- Short circuit protection by VCE monitoring and switch off
- Drive interlock top / bottom
Approvals
RoHS Compliant
Typical Applications
- Driver for IGBT modules in bridge circuits in industrial applications
- DC bus voltage up to 1200 V
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | DC Bus Voltage up to 1200V, Driver for IGBT modules in bridge circuits |
| Supply Voltage Primary (VS) | 18V |
| Maximum Output Current (IoutPEAK) | 20A |
| Collector Emitter Voltage (VCE) | 1700V |
| Input Signal Voltage HIGH (ViH) | Vs + 0.3V |
| Output Average Current (IoutPEAK) | 20A |
| Maximum Switching Frequency (fmax) | 50 kHz |
| Operating Junction Temperature (TJ) | -40°C to +85°C |
| Rate of rise and fall of voltage secondary to primary side (dv/dt) | 50kV/μs |
| Mounting Style | PCB |
| Package/Case | SEMIDRIVER™ |
| Product Type | Hybrid Dual IGBT Driver |
| Compliance | RoHS Compliant |
Semikron Danfoss is a leading manufacturer of semiconductor components, including power modules and systems. Based in Germany, Semikron Danfoss specialises in discrete semiconductors, transistors, diodes, thyristors, IGBTs, MOSFETs and thyristor diode modules. Semikron’s state-of-the-art semiconductor range enables customers to develop smaller, more energy efficient power electronic systems, reducing global energy demand.
