25RIA80 In stock

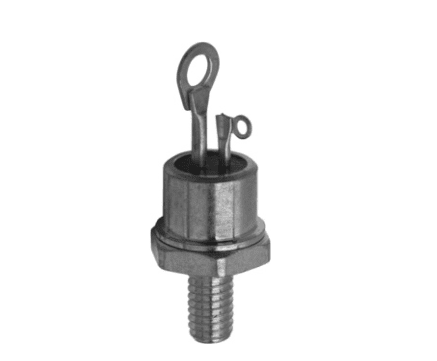

25RIA80 Thyristor Module 800V, 25A

The 25RIA80 is a 25A stud version medium power phase control thyristor designed for industrial and consumer applications.

  • High dI/dt and dV/dt capabilities
  • Standard package
  • Low thermal resistance
  • Metric threads version available
  • Improved glass passivation for high reliability and exceptional stability at high temperature
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The 25RIA80 device provides improved glass passivation for high reliability and exceptional stability at high temperature, high di/dt and dV/dt capabilities and low thermal resistance.

Approvals
RoHS Compliant

Typical Applications

  • Medium power switching
  • Phase control applications

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, , , , ,

Maximum Repetitive Reverse Voltage (VRRM)

800V

Maximum Average Forward Current (ITAV)

25A

Configuration

Single

Package/Case

TO-48 (TO-208AA)

Operating Junction Temperature (TJ)

-65°C to +125°C

Mounting Style

Stud Mount

Product Type

SCR

Reverse Recovery Time (trr)

4μs

Value for Fusing (I2t)

50Hz – 867 A2s 60Hz – 790 A2s

Maximum Repetitive Forward Blocking Voltage (VDRM)

800V

Trigger Gate Current (IGT)

60mA

Peak On-state Voltage Drop (VTM)

1.70V

Turn-off Time (Tq)

110μs

Maximum Surge On-state Current (ITSM) at 50Hz

420A

Compliance

RoHS Compliant

Datasheet

Datasheet

vs-25ria.pdf
