150U120DL HT In stock

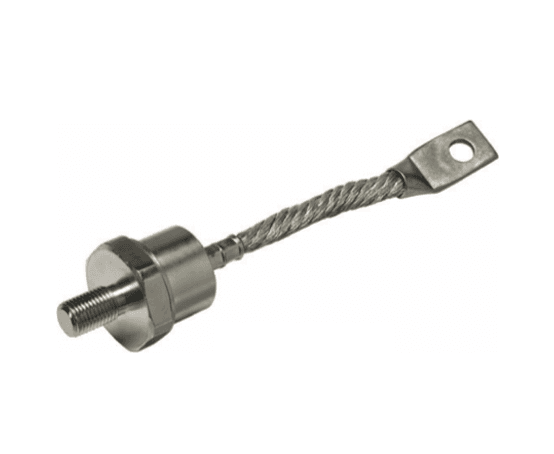

150U120DL Standard Recovery Diode 1200V, 150A

The 150U120DL standard recovery diode features stud cathode and stud anode polarities.

  • Diffused diode
  • High voltage ratings up to 1200V
  • High surge current capabilities
  • Stud cathode and stud anode version
  • Hermetic metal case
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The 150U120DL has a stud mounting style, DO-8 (DO-205AA) package and a maximum operating temperature of 180°C.

The standard recovery diode is designed and qualified for industrial level as a single circuit, has a hermetic metal case and high surge capabilities with voltage ratings up to 1200V.

Approvals
RoHS Compliant

Typical Applications

  • Welders
  • Power supplies
  • Machine tool controls
  • High power drives
  • Medium traction applications
  • Battery chargers
  • Freewheeling diodes

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantREACH Compliant

Manufacturer

Applications

, , , , , ,

Maximum Repetitive Reverse Voltage (VRRM)

1200V

Configuration

Single

Package/Case

DO-8 (DO-205AA)

RMS Forward Current (IFRMS)

235A

Maximum Surge Forward Current (IFSM) at 50Hz

3000A

Maximum Surge Forward Current (IFSM) at 60Hz

3140A

Operating Junction Temperature (TJ)

-40°C to +180°C

Maximum Non-Repetitive Reverse Voltage (VRSM)

1300V

Maximum Repetitive Reverse Current (IRRM)

15mA

Mounting Style

Stud Mount

Product Type

Diode, Standard Recovery Diode

Compliance

RoHS Compliant

Datasheet

Datasheet

vs-150urseries.pdf
