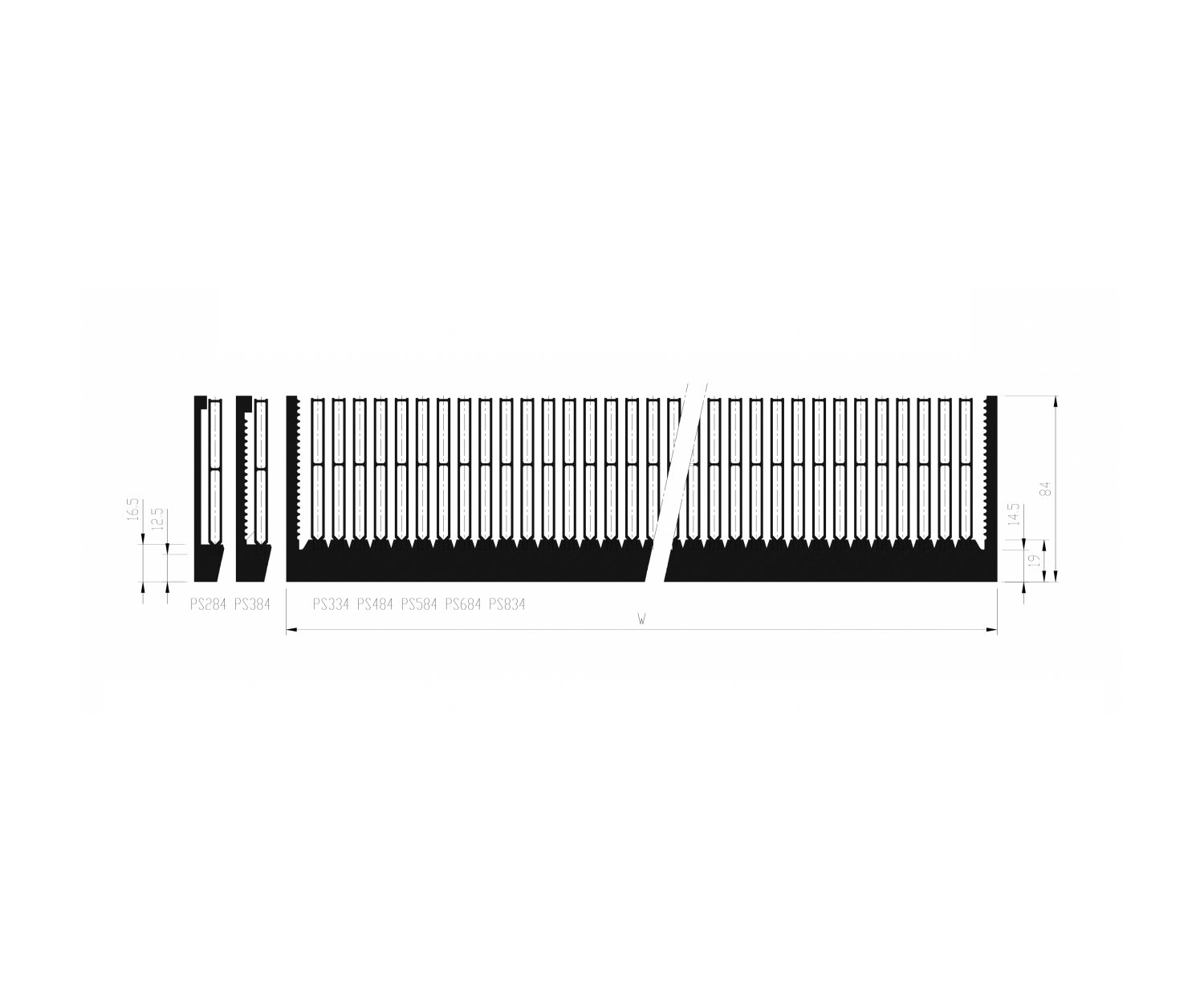

PS484 heastink
PS484 heastink

Images are for reference only, see product specifications for full details

PS484

PS484 Large Isolated Device Heatsink

The PS484 is a high efficiency heatsink profile designed specifically for large isolated devices. We stock and machine a large range of heatsinks suitable for stud, modules and capsule semiconductors, alongside high power LED applications.

  • Profile dimensions – 84mm x 400mm
  • Suitable for large isolated modules
  • Extrusion in stock
  • Cut to any length
  • Machined to order
  • Optional finishes

Currently Out of Stock

Get notified when this item is back in stock or contact us for alternatives

Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

As one of the UK’s leading heatsink suppliers, we stock and machine a wide range of extruded aluminium heatsinks and offer custom designs to cater to customers drawings. We have been supplying heatsinks to customers for many years in the rail, LED lighting, solar, industrial, automotive and marine industries.

Profile Dimensions
84mm x 400mm

Thermal Data

Heatsink Ref. Width mm No. Fins Length 100mm RthC/W 100mm Length 200mm Rth C/W 200mm Length 300mm Rth C/W 300mm Length 400mm Rth C/W 400mm Length 500mm Rth C/W 500mm Length 600mm Rth C/W 600mm Length 600mm Rth C/W 700mm
PS484 400mm 38 0.0408 0.027 0.0215 0.0185 0.0165



Compliance
ISO 9001:2015, RoHS Compliant

Typical Applications

  • Rail
  • Solar
  • Electrical & Industrial equipment
  • Automotive
  • Marine

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , , ,

Height (mm)

84mm

Width (mm)

400mm

Compliance

RoHS Compliant

With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.

The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.

The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
