PS334 Large Isolated Device Heatsink
The PS334 is a high efficiency heatsink profile designed specifically for large isolated devices. We stock and machine a large range of heatsinks suitable for stud, modules and capsule semiconductors, alongside high power LED applications.
- Profile dimensions – 84mm x 250mm
- Suitable for large isolated modules
- Extrusion in stock
- Cut to any length
- Machined to order
- Optional finishes
Currently Out of Stock
Get notified when this item is back in stock or contact us for alternatives
As one of the UK’s leading heatsink suppliers, we stock and machine a wide range of extruded aluminium heatsinks and offer custom designs to cater to customers drawings. We have been supplying heatsinks to customers for many years in the rail, LED lighting, solar, industrial, automotive and marine industries.

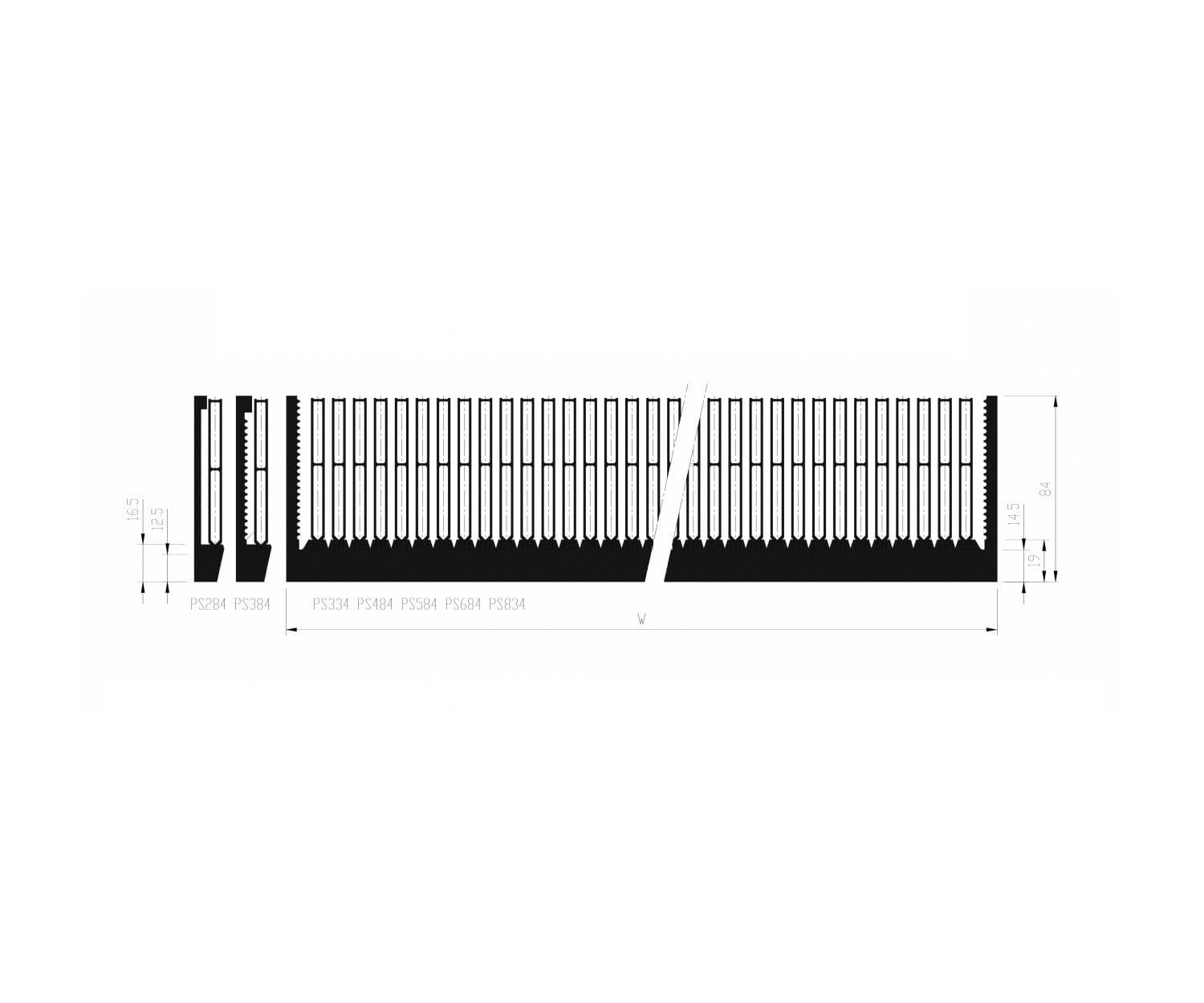

Profile Dimensions
84mm x 250mm
Thermal Data
| Heatsink Ref. | Width mm | No. Fins | Length 100mm RthC/W 100mm | Length 200mm Rth C/W 200mm | Length 300mm Rth C/W 300mm | Length 400mm Rth C/W 400mm | Length 500mm Rth C/W 500mm | Length 600mm Rth C/W 600mm | Length 600mm Rth C/W 700mm |
|---|---|---|---|---|---|---|---|---|---|
| PS334 | 250mm | 23 | 0.0663 | 0.0438 | 0.0349 | 0.03 | – | – | – |
Compliance
ISO 9001:2015, RoHS Compliant
Typical Applications
- Rail
- Solar
- Electrical & Industrial equipment
- Automotive
- Marine
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Automotive, Electrical and Industrial Equipment, Marine, Rail, Solar Power |
| Height (mm) | 84mm |
| Width (mm) | 250mm |
| Compliance | RoHS Compliant |
With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.
The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.
The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
GD Rectifiers
GD Rectifiers design and manufacture selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.
We are one of the UK’s leading distributors of power electronic components and hold extensive stock of diodes, thyristors, IGBTs and MOSFETs from the world’s leading semiconductor manufacturers.
Learn more about our products by getting in touch with us.
Datasheet
GD Rectifiers PS334 Datasheet.pdf
Line Card
GD Rectifiers Line Card 2023
Catalogue
GD Rectifiers Product Catalogue
