PS384C/400BF 040029A-23 In stock

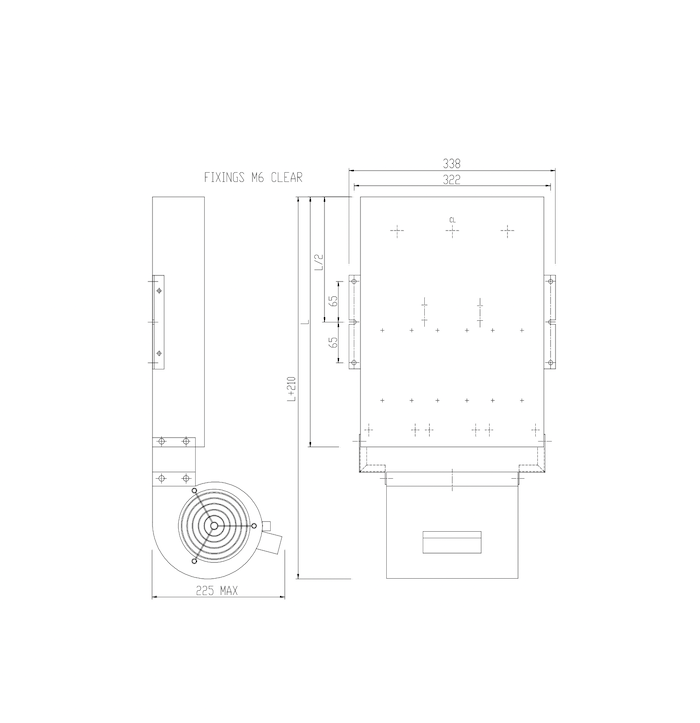

PS384C/400BF 040029A-23 Forced Air Cooled Heatsink

The PS384C/400BF 040029A-23 is a forced air cooled heatsink profile suitable for isolated diode, thyristor, MOSFET and IGBT modules with 80-112mm fixings.

  • Profile dimensions – 338mm x 610mm
  • Suitable for cooling power semiconductor modules
  • Extrusion in stock
  • Cut to any length
  • Machined to order
  • Optional finishes
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The PS384C/400BF 040029A-23 is a forced air cooled heatsink profile suitable for isolated diode, thyristor, MOSFET and IGBT modules with 80-112mm fixings.

Forced air cooled heatsinks are ideal for cooling power semiconductor modules for traction and auxiliary power units, cooling of inverter modules in renewable energy systems and for the cooling of frequency converters in soft starters or large drives.

Units include: Dual 110-115 or 230-240VAC ball bearing fans, fan finger guard, inlet duct and mounting feet.

Profile Dimensions
338mm x 610mm

Compliance
ISO 9001:2015, RoHS Compliant

Typical Applications

  • Traction and auxiliary power units in rail vehicles
  • Inverter modules in renewable energy systems
  • Frequency converters in soft starters or large drives
  • Electrical and industrial equipment

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , ,

Compliance

RoHS Compliant

Product Type

Forced Air Cooled Heatsink, Heatsink

Height (mm)

338mm

Width (mm)

610mm

With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.

The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.

The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.

GD Rectifiers

GD Rectifiers design and manufacture selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

We are one of the UK’s leading distributors of power electronic components and hold extensive stock of diodes, thyristors, IGBTs and MOSFETs from the world’s leading semiconductor manufacturers.

Learn more about our products by getting in touch with us.

Datasheet

Datasheet

PS384C-xxF-data.pdf

Line Card

Line Card

GD Rectifiers Line Card 2023

Catalogue

Catalogue

GD Rectifiers Product Catalogue

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

PS385/400BF 040028C-23 Forced Air Cooled Heatsink

PS385/400BF 040028C-23 Forced Air Cooled Heatsink, 0.020°C/W, 338mm x 610mm

  • Download Datasheet
  • Parts List
  • Compare

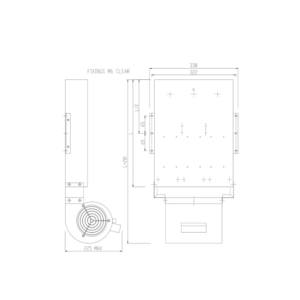

PS384C/400BF 040029A-11 Forced Air Cooled Heatsink

PS384C/400BF 040029A-11 Forced Air Cooled Heatsink, 0.021°C/W, 338mm x 610mm

  • Download Datasheet
  • Parts List
  • Compare

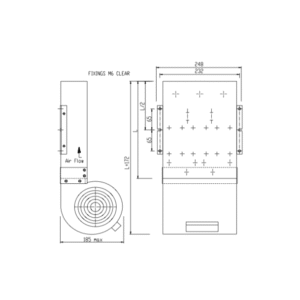

PS292/300BF 040027B-23 Forced Air Cooled Heatsink

PS292/300BF 040027B-23 Forced Air Cooled Heatsink, 0.028°C/W, 248mm x 472mm

  • Download Datasheet
  • Parts List
  • Compare

PS384C/400BF 040029C-11 Forced Air Cooled Heatsink

PS384C/400BF 040029C-11 Forced Air Cooled Heatsink, 0.020°C/W, 338mm x 610mm

  • Download Datasheet
  • Parts List
  • Compare

PS385/400BF 040028C-11 Forced Air Cooled Heatsink

PS385/400BF 040028C-11 Forced Air Cooled Heatsink, 0.020°C/W, 338mm x 610mm

  • Download Datasheet
  • Parts List
  • Compare

PS384C/400BF 040029C-23 Forced Air Cooled Heatsink

PS384C/400BF 040029C-23 Forced Air Cooled Heatsink, 0.020°C/W, 338mm x 610mm

  • Download Datasheet
  • Parts List
  • Compare

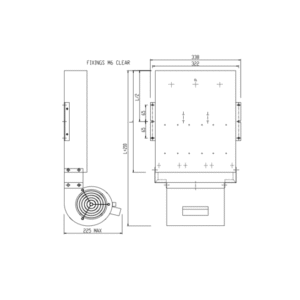

PS385/400BF 040028A-11 Forced Air Cooled Heatsink
