PS292/300BF 040027B-23 In stock

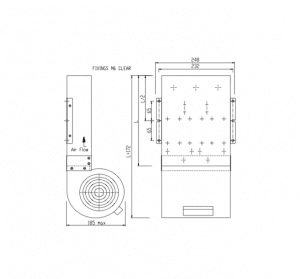

PS292/300BF 040027B-23 Forced Air Cooled Heatsink

The PS292/300BF 040027B-23 is a forced air cooled heatsink profile suitable for isolated diode, thyristor, MOSFET and IGBT modules with 80mm fixings.

  • Profile dimensions – 248mm x 472mm
  • Suitable for cooling power semiconductor modules
  • Extrusion in stock
  • Cut to any length
  • Machined to order
  • Optional finishes
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The PS292/300BF 040027B-23 is a forced air cooled heatsink profile suitable for isolated diode, thyristor, MOSFET and IGBT modules with 80mm fixings. Units include: 110-115 or 230-240VAC ball bearing fans, fan finger guard, inlet duct and mounting feet.

Forced air cooled heatsinks are ideal for cooling power semiconductor modules for traction and auxiliary power units, cooling of inverter modules in renewable energy systems and for the cooling of frequency converters in soft starters or large drives.

Profile Dimensions
248mm x 472mm

Compliance
ISO 9001:2015, RoHS Compliant

Typical Applications

  • Traction and auxiliary power units in rail vehicles
  • Inverter modules in renewable energy systems
  • Frequency converters in soft starters or large drives
  • Electrical and industrial equipment

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , ,

Height (mm)

472mm

Width (mm)

248mm

Compliance

RoHS Compliant

With over 50 years of extensive experience across a large range of markets, GD Rectifiers design and manufacture standard and custom made heatsinks, selenium and silicon rectifiers, suppressors, converters, inverters and regulator products for industrial power control applications.

GD Rectifiers’ engineers are experts in designing high quality and high reliability heatsinks and power assemblies for applications where optimised performance is required. Solid state semiconductor technology used in power assemblies provide customers with standard and custom design solutions for most industrial power applications.

The custom power specialist also manufactures a wide range of thermal management solutions, including axial fans, thermal trips and fan accessories. GD Rectifiers’ thermal management solutions improve reliability and prevent premature failure.

The company offer a wide range of high efficiency phase controlled thyristors, including replacements for obsolete thyristors, alongside circuit protection devices such as surge arresters and varistors for maximum security and protection.
