VUO105-18NO7 In stock

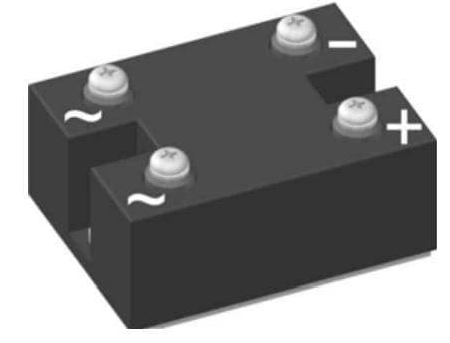

VUO105-18NO7 Rectifier Bridge Module 1800V, 120A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The VUO105-18NO7 three phase rectifier bridge module offers improved temperature and power cycling, very low forward voltage drop and low leakage current.

  • Package with DCB isolated copper base plate
  • Easy to mount with two screws
  • Planar passivated chips
  • Very low forward voltage drop
  • Improved temperature and power cycling
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

The VUO105-18NO7 is a 4-pin single-phase rectifier bridge module with improved temperature and power cycling and easy to mount with two screws.

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • Diode for main rectification
  • For three phase bridge configurations
  • Input rectifiers for PWM inverter
  • DC supply for PWM inverter
  • Battery DC power supplies
  • Field supply for DC motors
  • Supplies for DC power equipment

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL RecognisedREACH Compliant

Manufacturer

Applications

, , , , , ,

Maximum Repetitive Reverse Voltage (VRRM)

1800V

Average DC Output Current (IDAV)

120A

Package/Case

PWS-C

Maximum Forward Surge Current (IFSM)

1500A

Reverse Current (IR)

100μA

Virtual Junction Temperature (TVJ)

-40°C to +150°C

Maximum Forward Voltage Drop (VF)

1.09V

Mounting Style

Screw Mount

Product Type

Rectifier Bridge Module

Compliance

RoHS Compliant

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

IXYS VUO105-18NO7 Datasheet.pdf

Product Catalogues

Product Catalogues

IXYS IGBTs Product Catalogue

Product Catalogues

IXYS Product Catalogue 2022-2023

Product Catalogues

IXYS Selector Guide 2015
