VUB160-16NOXT In stock

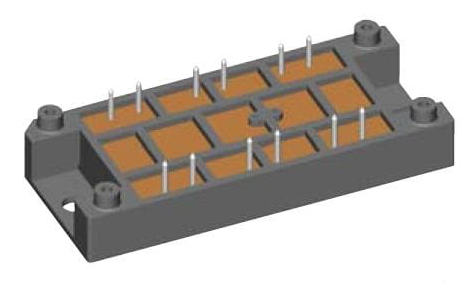

VUB160-16NOXT Rectifier Bridge Module 1600V, 180A

The VUB160-16NOXT standard bridge rectifier module features thin wafer technology combined with X2PT design offering a competitive low VCE(sat) and low thermal resistance.

  • Package with DCB ceramic base plate
  • Isolation voltage 3600V
  • Planar passivated chips
  • Very low forward voltage drop
  • Improved temperature and power cycling
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

This bridge rectifier is suited to three phase rectifiers with brake units for drive inverters.

Approvals
RoHS Compliant, UL Recognised

Typical Applications

  • Three phase rectifiers with brake units for drive inverters

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL RecognisedREACH Compliant

Manufacturer

Applications

Maximum Repetitive Reverse Voltage (VRRM)

1600V

Average DC Output Current (IDAV)

180A

Package/Case

V2-Pack

Maximum Forward Surge Current (IFSM)

1100A

Collector Emitter Voltage (VCES)

1200V

Collector Current (IC) at 25°C

250A

Operating Temperature (Top)

-40°C to +125°C

Collector Emitter Saturation Voltage VCE(sat)

1.7V

Mounting Style

Screw Mount

Product Type

Rectifier Bridge Module

Isolated Base

Yes

Compliance

RoHS Compliant, UL Recognised

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

media?resourcetype=datasheets&itemid=f3d74e3f-3054-42df-9a25-e3e42be90586&filename=littelfuse-power-semiconductors-vub160-16noxt-datasheet

Product Catalogues

Product Catalogues

IXYS IGBTs Product Catalogue

Product Catalogues

IXYS Product Catalogue 2022-2023

Product Catalogues

IXYS Selector Guide 2015

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

VUO110-16NO7 Rectifier Bridge Module 1600V, 125A

VUO110-16NO7 Rectifier Bridge Module 1600V, 125A

  • Download Datasheet
  • Parts List
  • Compare

VUO190-12NO7 Rectifier Bridge Module 1200V, 240A

VUO190-12NO7 Rectifier Bridge Module 1200V, 240A

  • Parts List
  • Compare

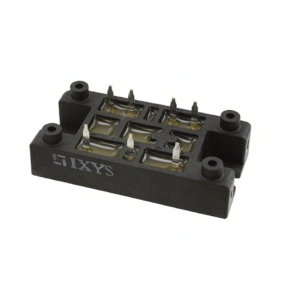

VUO22-14NO1 Rectifier Bridge Module 1400V, 440A
