Images are for reference only, see product specifications for full details

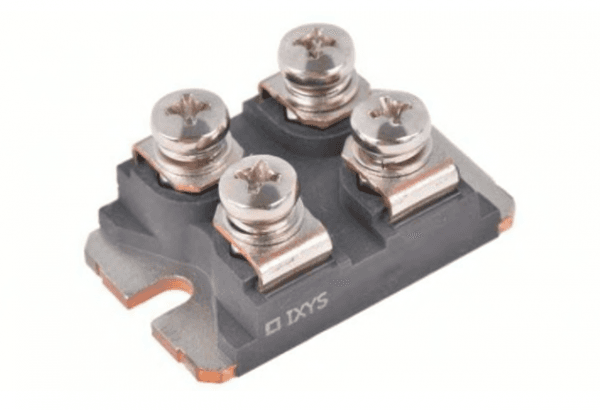

VBO40-16NO6 Bridge Rectifier 1600V, 40A
Offering single and three phase isolated bridge rectifiers for low to lower medium power applications. Standard and special topologies are available in various case and terminal designs. For voltages ranging from 200V to 2200V and currents ranging from 9A to 83A
Approvals
RoHS Compliant
Typical Applications
- Diode for main rectification
- For one phase bridge configurations
- Supplies for DC power equipment
- Input rectifiers for PWM inverter
- Battery DC power supplies
- Field supply for DC motors
Refer to manufacturer’s datasheet for full technical information.
| Manufacturer | |
|---|---|
| Applications | Battery DC Power Supplies, Diode for Main Rectification, Field supply for DC motors, For one phase bridge configurations, Input rectifiers for PWM inverter, Supplies for DC Power Equipment |
| Maximum Repetitive Reverse Voltage (VRRM) | 1600V |
| Bridge Output Current (IDAV) | 40A |
| Maximum Non-Repetitive Reverse Voltage (VRRM) | 1700V |
| Package/Case | SOT-227B |
| Maximum Surge Forward Current (IFSM) | 320A |
| Operating Junction Temperature (TJ) | -40°C to +150°C |
| Mounting Style | SMD/SMT |
| Product Type | Rectifier Bridge |
| Value for Fusing (I2t) | 510 A2s |
| Maximum Forward Voltage Drop (VF) | 1.15V |
| Maximum Reverse Current (IR) | 40 μA |
| Compliance | RoHS Compliant, UL Registered E72873 |
IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.
IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.
IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.
The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.
IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.
IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.
IXYS: A Littelfuse Technology
IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.
Learn more about IXYS products by getting in touch with GD Rectifiers.
Datasheet
https://www.gdrectifiers.co.uk/wp-content/uploads/2023/01/IXYS-VBO40-16No6-Datasheet.pdf
