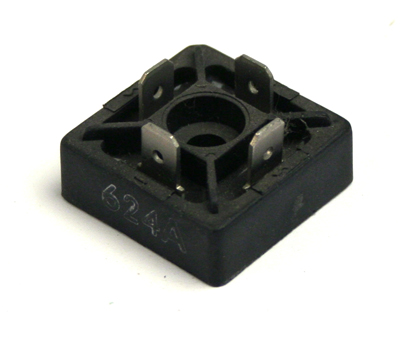

VBO25-16NO2 HT In stock

VBO25-16NO2 Rectifier Bridge 1600V, 31A

The VBO25-16NO2 single phase rectifier bridge has a voltage of 1600V and an average DC output current of 31A. The single phase rectifier bridge offers improved thermal behaviour, has a low forward voltage drop and is UL registered E72873.

  • Planar passivated chips
  • Avalanche rated parts available
  • Low forward voltage drop
  • Package with DCB ceramic base plate
  • Isolation voltage 3600V
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The VBO25-16NO2 is easy to mount with one screw, offers improved temperature and power cycling and provides space and weight savings.

Bridge rectifiers are popular devices and are known for converting an Alternating Current (AC) input into Direct Current a (DC) output. Diode bridges feature an arrangement of four diodes in a bridge circuit configuration, providing the same polarity of output for either polarity of input.

Approvals
UL Registered E72873, RoHS Compliant

Typical Applications

  • Supplies for DC power equipment
  • Input rectifiers for PWM inverter
  • Battery DC power supplies
  • Field supply for DC motors

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL RecognisedREACH Compliant

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

1600V

Average DC Output Current (IDAV)

31A

Maximum Surge Forward Current (IFSM)

370A

Maximum Non-Repetitive Reverse Blocking Voltage (VRSM)

1700V

Reverse Current (IR)

0.3mA

Forward Voltage Drop (VF)

1.8V

Value for Fusing (I2t)

680 A2s

Maximum Surge Reverse Power Dissipation (PRSM)

3.4kW

Operating Temperature (TVJ)

-40°C to +150°C

Mounting Style

Screw Mount

Package/Case

FO-A

Product Type

Rectifier Bridge

Compliance

RoHS Compliant, UL Registered E72873

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Datasheet

Datasheet

IXYS VBO25-16NO2 Datasheet.pdf

Product Catalogues

Product Catalogues

IXYS IGBTs Product Catalogue

Product Catalogues

IXYS Product Catalogue 2022-2023

Product Catalogues

IXYS Selector Guide 2015

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

VBO13-14NO2 Rectifier Bridge 1400V, 13A

VBO13-14NO2 Rectifier Bridge 1400V, 13A

  • Download Datasheet
  • Parts List
  • Compare

VBO160-12NO7 Rectifier Bridge Module 1200V, 160A

VBO160-06NO1 Rectifier Bridge Module 1200V, 160A

  • Parts List
  • Compare

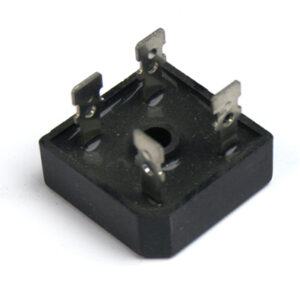

VBO35-08NO4 Rectifier Bridge 800V, 32A
