VBO20-06NO1 HT In stock

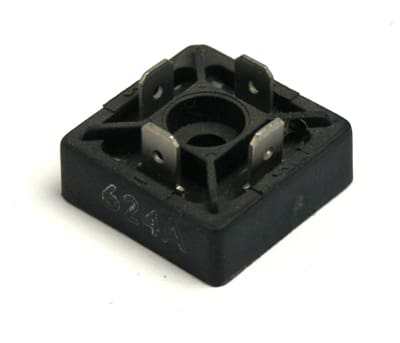

VBO20-06NO1 Rectifier Bridge Module 600V, 22A

This part is obsolete, see below for alternative:
VBO20-16NO2

The VBO20-06NO1 is a single phase rectifier bridge module and has a voltage of 600V and an average DC output current of 22A. The single phase rectifier bridge offers improved thermal behaviour, has a low forward voltage drop and is UL registered E72873.

  • Planar passivated chips
  • Package with DCB ceramic base plate
  • Low forward voltage drop
  • Avalanche rated parts available
  • Improved temperature and power cycling
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The VBO20-06NO1 is easy to mount with one screw and offers advanced power cycling.

Bridge rectifiers are popular devices and are known for converting an Alternating Current (AC) input into Direct Current a (DC) output. Diode bridges feature an arrangement of four diodes in a bridge circuit configuration, providing the same polarity of output for either polarity of input.

Approvals
UL Registered E72873, RoHS Compliant

Typical Applications

  • Diode for main rectification
  • Supplies for DC power equipment
  • Input rectifiers for PWM inverter
  • Battery DC power supplies
  • Field supply for DC motors

Refer to manufacturer’s datasheet for full technical information.

RoHS CompliantUL Recognised

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

600V

Average DC Output Current (IDAV)

22A

Maximum Surge Forward Current (IFSM)

300A

Maximum Non-Repetitive Reverse Blocking Voltage (VRSM)

900V

Reverse Current (IR)

0.3mA

Forward Voltage Drop (VF)

1.8V

Value for Fusing (I2t)

450 A2s

Maximum Surge Reverse Power Dissipation (PRSM)

3.4kW

Operating Temperature (TVJ)

-40°C to +150°C

Mounting Style

Screw Mount

Package/Case

FO-A

Product Type

Rectifier Bridge Module

Compliance

RoHS Compliant, UL Registered E72873

IXYS Corporation is a global manufacturer of power semiconductors and power modules, based in Colorado, USA.

IXYS is a pioneering manufacturer of semiconductor and IC technology, with a heritage spanning back twenty-five years, they now have over 125 patents and innovations across their extensive product range. The comprehensive product portfolio includes: reverse blocking IGBTs, MOSFET gate drivers, diodes, thyristors, thyristor/diode modules, rectifiers and fast recovery diodes.

IXYS comprises of three divisions: IXYS Corporation, IXYS IC (Clare) and IXYS Colorado. IXYS Corporation is one of the world’s leading power semiconductor manufacturers, they offer a comprehensive range of MOSFETs, Fast Recovery Diodes (FREDs), SCR and Diode Modules, RF Systems, Rectifiers, Power Interface ICs, IGBTs and Thyristors, in discrete and integrated power modules.

The IXYS IC division designs and produces SOI base HVIC’s flexible display drivers, driver IC’s, optically isolated drivers, solid state relays (SSR), isolated AC switches, ocptocouplers, photovoltaic chips and ASIC’s.

IXYS Colorado formerly manufactured Radio Frequency (RF) and Microwave Discrete Semiconductor products, including: RF Amplifiers, RF MOSFETs, Hybrid Modules, RF Drivers and Gunn Diodes. These products are now obsolete but please contact GD Rectifiers if you are require parts from the RF range.

IXYS Semiconductors, Integrated Circuits and RF Systems are used across numerous applications in the transportation, medical, industrial, telecommunications and computing industries. IXYS’ semiconductors generate clean energy, control motors, improve automation, improve medical equipment and electrifies transportation.

IXYS: A Littelfuse Technology

IXYS is a world leading manufacturer of power semiconductors, their product range includes: IGBTs, MOSFETs, thyristors, diodes and semiconductor accessories. IXYS is now part of Littelfuse. Together, IXYS and Littelfuse leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS products by getting in touch with GD Rectifiers.

Product Catalogues

Product Catalogues

IXYS IGBTs Product Catalogue

Product Catalogues

IXYS Product Catalogue 2022-2023

Product Catalogues

IXYS Selector Guide 2015

Share Product

Related Products

Our specialist products, components and designs can be found in a wide range of applications around the world. We also partner with customers to design custom components and devices to suit their requirements.

  • Download Datasheet
  • Parts List
  • Compare

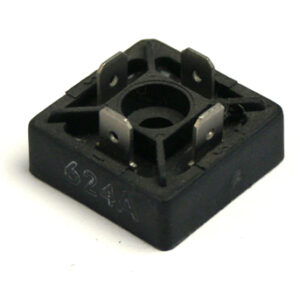

VBO13-12AO2 Rectifier Bridge 1200V, 13A
