W0628RA150SBA In stock

W0628RA150SBA Rectifier Diode 1500V, 400A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

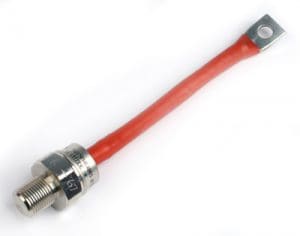

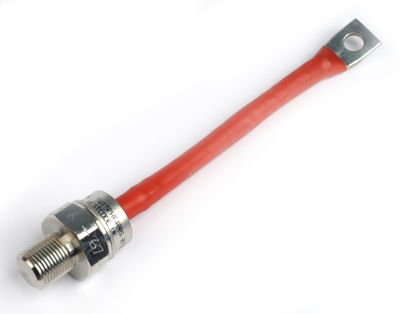

The W0628RA150SBA is a stud based rectifier diode and has a voltage of 1500V and a current of 400A.

  • Low conduction losses
  • High temperature alloyed die construction
  • Low thermal impedance
  • High overload capacity
  • Obsolete semiconductor
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The rectifier diode offers class leading performance and reliability, devices are optimised to provide low conduction losses and are ideally suited to line frequency applications.

Typical Applications

  • Input rectifiers for variable speed drives
  • Traction converters
  • Trackside substations
  • Welding and DC power supplies

This part is now obsolete and stock is limited.
For further information on this device please contact our sales team on 01444 243 452 or email enquiries@gdrectifiers.co.uk.

Refer to manufacturer’s datasheet for full technical information.

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

1200V

Maximum Surge Forward Current (IFSM)

7500A

Value for Fusing (I2t)

0.28 x 106 A2s

RMS Forward Current (IFRMS)

628A

Forward Current IF(d.c. max.)

628A

Maximum Virtual Junction Temperature (TJM)

190°C

Thermal Resistance Junction to Case (RthJC)

0.13°C/W

Thermal Resistance Junction to Case (RthJC 120° Rect.)

0.04°C/W

Operating Temperature Range (TJ op)

-40°C to +190°C

Forward Conduction Threshold Voltage (V0)

0.8V

Maximum Repetitive Reverse Current (IRRM)

15mA

Product Type

Rectifier Diode

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.
