SW12PCR040 HT In stock

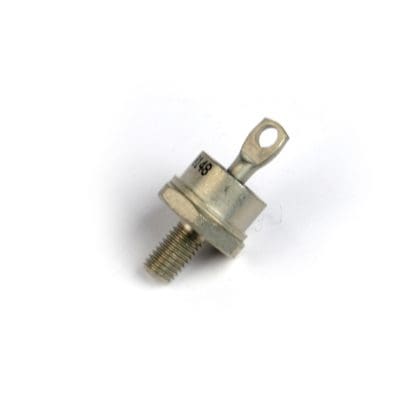

SW12PCR040 Silicon Rectifier Diode 1200V, 70A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / [email protected]

The SW12PCR040 is a silicon rectifier diode with a voltage rating of 1200V.

  • Voltage range 1200V
  • Stud type
  • Plastic and metal housings
  • Obsolete semiconductor
  • The DS-series and DSI-series are modern day alternatives
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The SW12PCR040 has an average forward current of 70A and an I2t value of 2113 A2s.
This device is now obsolete and is not recommended for new designs.

Typical Applications

  • Rectifiers
  • Power supplies

Refer to manufacturer’s datasheet for full technical information.

Manufacturer

Applications

,

Maximum Repetitive Reverse Voltage (VRRM)

1200V

RMS Forward Current (IFRMS)

118A

Forward Current (IF)

118A

Maximum Surge Forward Current (IFSM)

650A

Value for Fusing (I2t)

2113 A2s

Maximum Repetitive Reverse Current (IRRM)

8mA

Forward Conduction Threshold Voltage (V0)

1.00V

Maximum Junction Temperature (TJ Max.)

175°C

Mounting Style

Stud Mount

Product Type

Silicon Rectifier Diode Rectifier Diode Diode
