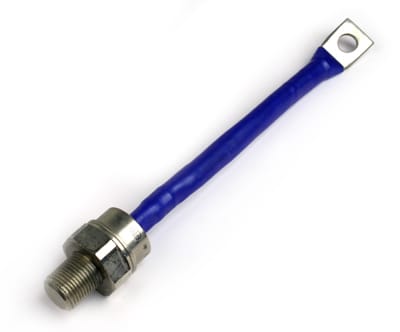

SW12PHN300 Silicon Rectifier Diode 1200V, 375A

This part is obsolete, please contact our team for a modern day alternative on 01444 243 452 / enquiries@gdrectifiers.co.uk

The SW12PHN300 is a silicon rectifier diode with a voltage rating of 1200V and an average forward current of 375A.

  • Voltage range 1200V
  • Stud type
  • Plastic and metal housings
  • Obsolete semiconductor
  • The DS-series and DSI-series are modern day alternatives
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

The rectifier diode is available with plastic and metal housings and different diode bridges are also available for standard line voltages from 110V to 690Vac.

This device is now obsolete and is not recommended for new designs.

Typical Applications

  • Rectifiers
  • Power supplies

Refer to manufacturer’s datasheet for full technical information.
