SM04PCN046 HT In stock

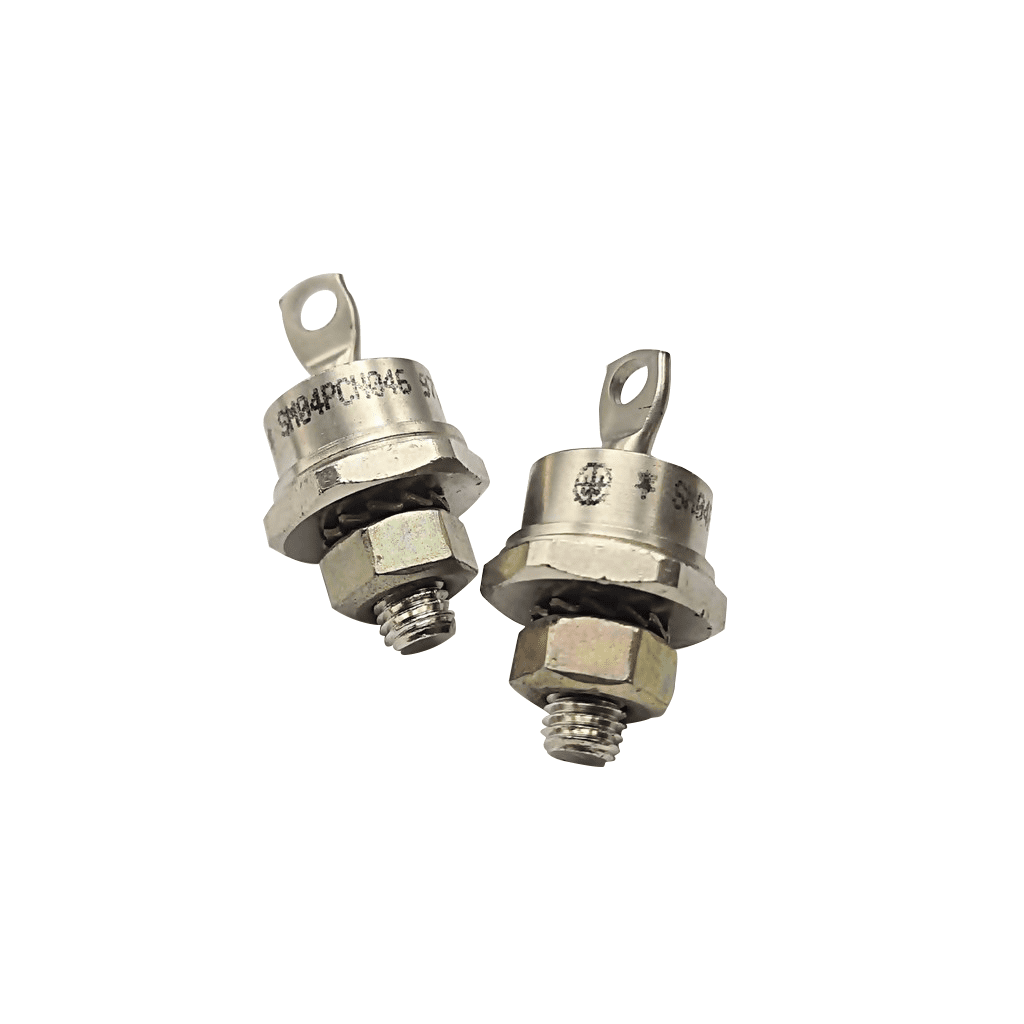

SM04PCN046 Fast Recovery Diode 400V, 45A

This part is obsolete, see below for alternative:
No Alternative

The SM04PCN046 Fast Recovery Diode (FRD) features low switching losses and soft recovery behaviour. It is suitable for power management, HVAC, motor drives and control applications.

  • Fast recovery stud-base diode
  • Cathode stud (forward) polarity
  • Low switching losses
  • Soft recovery behaviour
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

This part has a normal cathode stud polarity and can be used instead of SM02PCN046 as the device is mechanically and electrically superior.

RoHS Compliant

Typical Applications

  • Power Management
  • Motor Drives and Control
  • HVAC

This part is now obsolete and stock is limited.
For further information on this device please contact our sales team on 01444 243 452 or email

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant



, ,

Maximum Repetitive Reverse Voltage (VRRM)


RMS Forward Current (IFRMS)


Maximum Peak Surge Current (IFSM)


Operating Junction Temperature (TJ)

-55°C to +150°C

Maximum Non-Repetitive Reverse Voltage (VRSM)


Maximum Repetitive Reverse Current (IRRM)


Product Type

Fast Recovery Diode

Maximum Forward Voltage Drop (VF)


Reverse Recovery Time (trr)


IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.
