M0139RM180 HT In stock

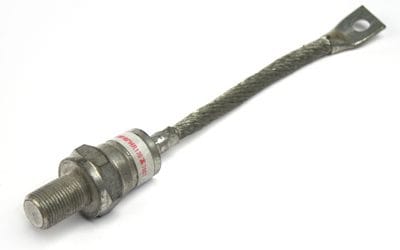

M0139RM180 Soft Recovery Diode 1800V, 139A

The M0139RM180 soft recovery diode is available with a range of reverse recovery characteristics tailored to meet the requirements of both freewheeling and snubber applications.

  • Blocking voltage of 1800V
  • Very low leakage current
  • Short recovery time
  • Soft reverse recovery for low EMI/RFI
  • Suitable for RCD snubbers, voltage clamping and snubberless applications
Add to wishlist

Expert technical support

Design Inspiration, whenever you need it

Custom & flexible ordering

Product Details

This soft recovery diode features a blocking voltage of 1800V and an average current rating of 139A. This device is particularly suitable where soft recovery is required, such as RCD snubbers, voltage clamping and snubberless applications.

Approvals
RoHS Compliant

Typical Applications

  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Free wheeling diode

Refer to manufacturer’s datasheet for full technical information.

RoHS Compliant

Manufacturer

Applications

, , ,

Maximum Repetitive Reverse Voltage (VRRM)

1800V

Maximum Average Forward Current IF(AV)M

139A

Maximum Peak Surge Current (IFSM)

2450A

Maximum Non-Repetitive Reverse Blocking Diode (VRSM)

1900V

Nominal RMS Forward Current IF(RMS)

288A

DC Forward Current IF(d.c)

219A

Capacity for Fusing (I2t)

3 x 103

Threshold Voltage (VT0)

1.24V

Slope Resistance (RF)

1.28mΩ

Thermal Resistance Junction to Case (RthJC)

0.30 K/W

Peak Reverse Current (IRRM)

20mA

Maximum Peak Forward Voltage (VFM)

1.60V

Operating Temperature Range (TJ op)

-40°C to +125°C

Product Type

Soft Recovery Diode Diode

Compliance

RoHS Compliant

IXYS UK Westcode is one the of the UK’s leading semiconductor manufacturers. Formerly known as Westcode, they launched the world’s first commercial rectifier in the early 1920’s. Westcode was acquired by IXYS Corporation in 2002, and shortly after changed its name to IXYS UK Westcode. Today, they manufacture high power thyristor capsules (GTO, fast & standard recovery), diode capsules (fast & standard recovery) and IGBT capsules.

As IXYS UK Westcode’s Official UK Distributor, we stock Europe’s largest range of IXYS UK’s semiconductors, fuses and capacitors. The company provide a large range fuses offering fast-acting, ultra rapid protection against device rupture and external short circuits. IXYS UK’s range of fuses feature proven advanced technology to international standards and are UL recognised. IXYS UK Westcode offer a range of power electronic capacitors to suit almost any application from filtering and smoothing DC voltages to GTO/IGBT snubber circuits and medium frequency applications.

One of the industries leading power semiconductor manufacturers, IXYS UK Westcode supplies high technology components to a wide range of applications, including: welding, AC and DC drives, rectifier supplies, uninterruptible power supplies, motor soft starts, transportation, induction heating and power conditioning.

IXYS UK Westcode

IXYS UK Westcode, formerly Westcode Semiconductors has been at the forefront of power semiconductor design. Supporting a truly worldwide and diverse market place, IXYS UK Westcode has evolved in to one of the world’s leading manufacturers of high power semiconductors.

IXYS UK Westcode is now part of Littelfuse. Together, IXYS and Littelfuse will leverage their combined technology portfolios and expertise to enhance customer value.

Learn more about IXYS UK Westcode products by getting in touch with GD Rectifiers.
